a) Determine the output Q of the given timing diagram of the flip flop for the time slots 1 to 8 indicated.Let the initi

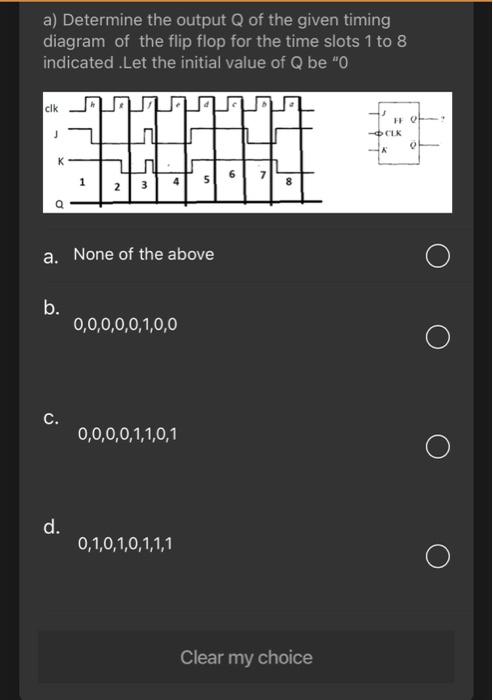

a) Determine the output Q of the given timing diagram of the flip flop for the time slots 1 to 8 indicated.Let the initial value of Q be "O clk O! -DCLK - K 6 1 5 2 3 a. None of the above b. 0,0,0,0,0,1,0,0 c. 0,0,0,0,1,1,0,1 d. 0,1,0,1,0,1,1,1 Clear my choice
