1) Consider the structure shown in Determine the moment of each force about the bolt located at A Take Fn = 170 N. Fe =

Post by answerhappygod »

1 Consider The Structure Shown In Determine The Moment Of Each Force About The Bolt Located At A Take Fn 170 N Fe 1
1 Consider The Structure Shown In Determine The Moment Of Each Force About The Bolt Located At A Take Fn 170 N Fe 1 (20.46 KiB) Viewed 38 times

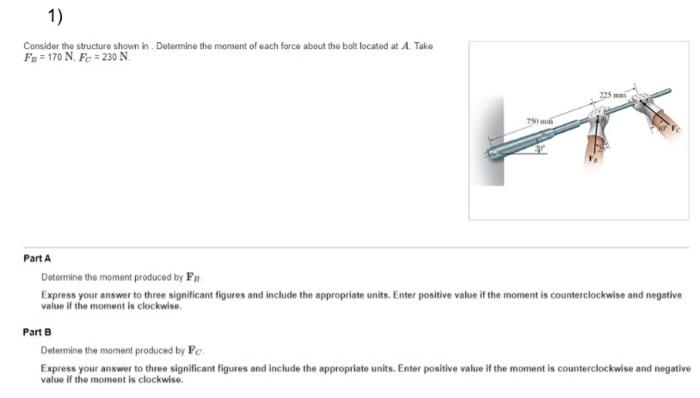

1) Consider the structure shown in Determine the moment of each force about the bolt located at A Take Fn = 170 N. Fe = 230 N 235 7501 Part A Determine the moment produced by FR Express your answer to three significant figures and include the appropriate units. Enter positive value if the moment is counterclockwise and negative value of the moment is clockwise Part B Determine the moment produced by FC Express your answer to three significant figures and include the appropriate units. Enter positive value if the moment is counterclockwise and negative value of the moment is clockwise
