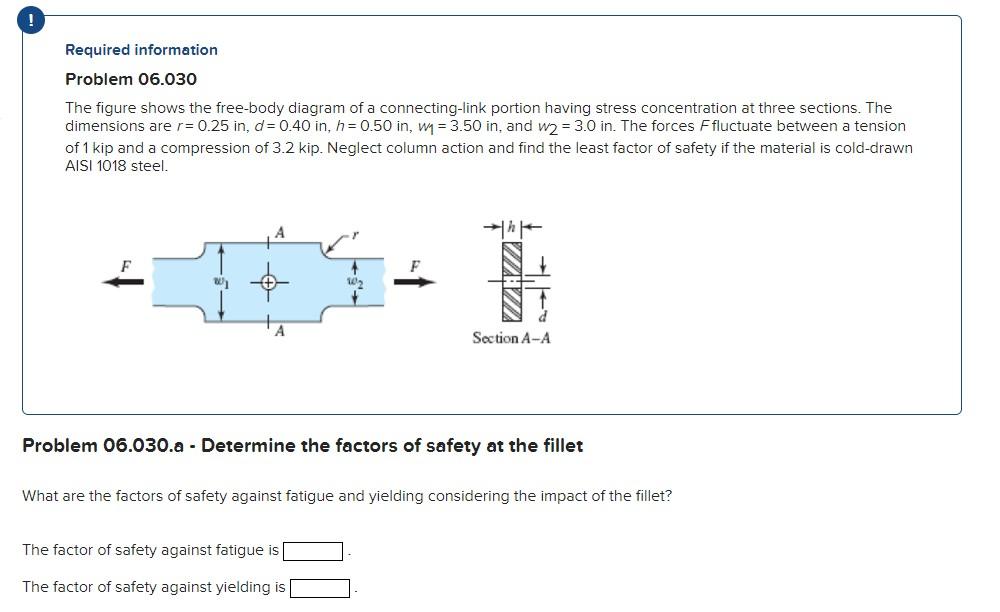

! Required information Problem 06.030 The figure shows the free-body diagram of a connecting-link portion having stress concentration at three sections. The dimensions are r= 0.25 in, d= 0.40 in, h=0.50 in, m = 3.50 in, and w2 = 3.0 in. The forces Ffluctuate between a tension of 1 kip and a compression of 3.2 kip. Neglect column action and find the least factor of safety if the material is cold-drawn AISI 1018 steel. altra Section A-A Problem 06.030.a - Determine the factors of safety at the fillet What are the factors of safety against fatigue and yielding considering the impact of the fillet? The factor of safety against fatigue is The factor of safety against yielding is

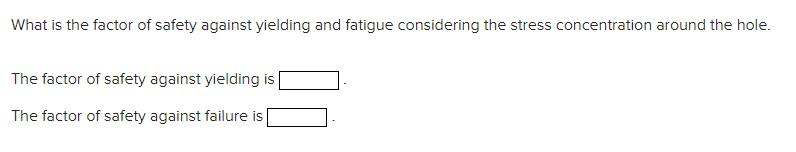

What is the factor of safety against yielding and fatigue considering the stress concentration around the hole. The factor of safety against yielding is The factor of safety against failure is
