A hollow structural steel flexural member is subjected to the load shown. Determine the normal and shear stresses acting

Post by answerhappygod »

A Hollow Structural Steel Flexural Member Is Subjected To The Load Shown Determine The Normal And Shear Stresses Acting 1
A Hollow Structural Steel Flexural Member Is Subjected To The Load Shown Determine The Normal And Shear Stresses Acting 1 (57.08 KiB) Viewed 35 times

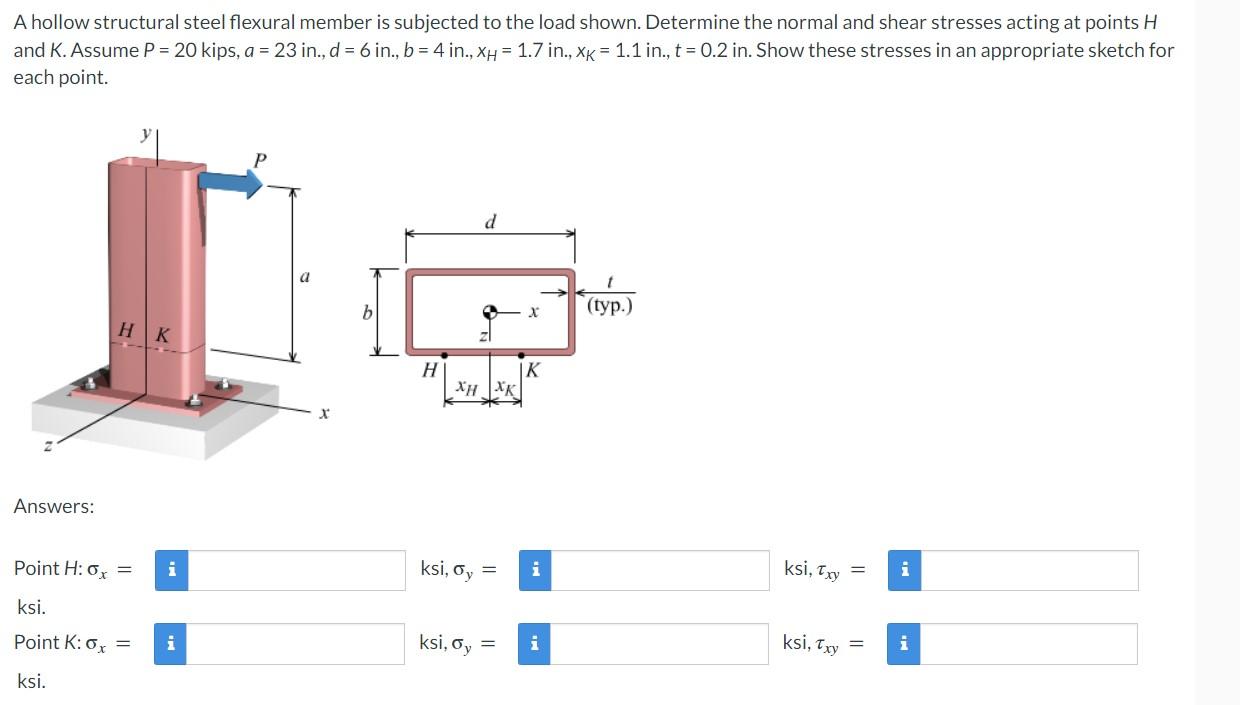

A hollow structural steel flexural member is subjected to the load shown. Determine the normal and shear stresses acting at points H and K. Assume P = 20 kips, a = 23 in., d = 6 in., b = 4 in., XH = 1.7 in., XK = 1.1 in., t = 0.2 in. Show these stresses in an appropriate sketch for each point. d b (typ.) HK - Н K XHXK Answers: Point H: 0x = ksi, y = i ksi, Txy = i ksi. Point K: 0x = i ksi, oy = i ksi, Txy = i ksi.
