For the following mechanism: a) Define the vectors representing each link, and write the loop- closure equation. b) Deri

Post by answerhappygod »

For The Following Mechanism A Define The Vectors Representing Each Link And Write The Loop Closure Equation B Deri 1
For The Following Mechanism A Define The Vectors Representing Each Link And Write The Loop Closure Equation B Deri 1 (187.2 KiB) Viewed 51 times

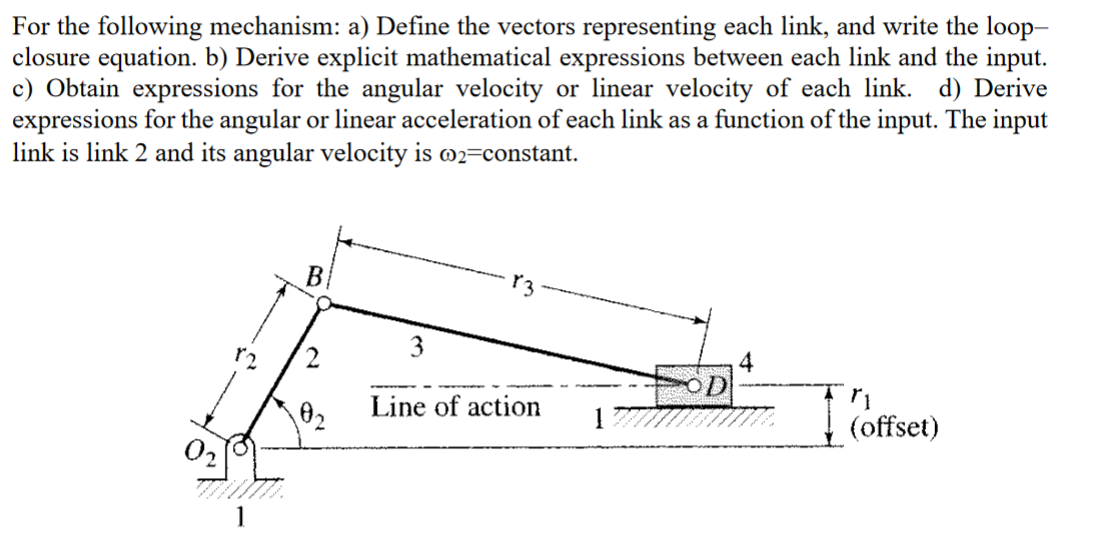

For the following mechanism: a) Define the vectors representing each link, and write the loop- closure equation. b) Derive explicit mathematical expressions between each link and the input. c) Obtain expressions for the angular velocity or linear velocity of each link. d) Derive expressions for the angular or linear acceleration of each link as a function of the input. The input link is link 2 and its angular velocity is 02=constant. B 2 4 02 ri Line of action (offset) 02
