WS 1,873 0.300 1.200 다 00.90 0.840 1.500 1.200 1.050 0.300 1.800 60.60 x2 holes 2700 4.800 2100

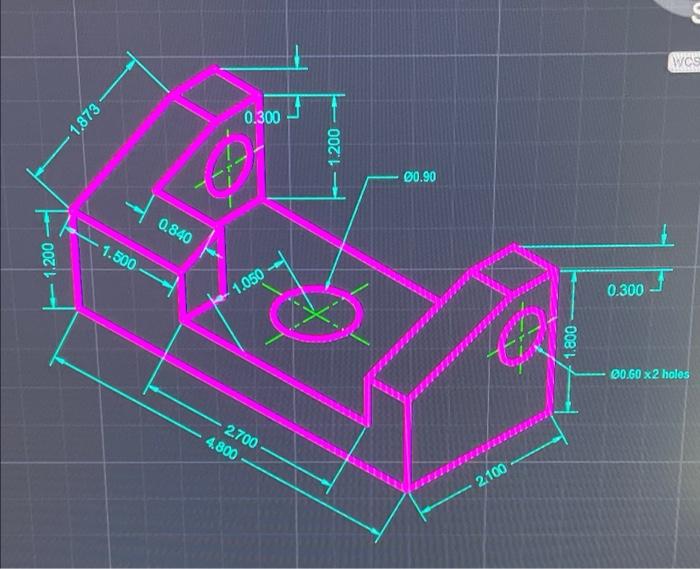

1. CREATE AN ORTHOGRAPHIC LAYOUT WITH OFFSET SECTION VIEW FROM THE ISOMETRIC DRAWING. 2 LABEL VIEWS WITH}" TEXT. 3. DIMENSION ORTHOGRAPHIC VIEWS WITH MECHANICAL DIMSTYLE 4. UPDATE TITLEBLOCK INFO
