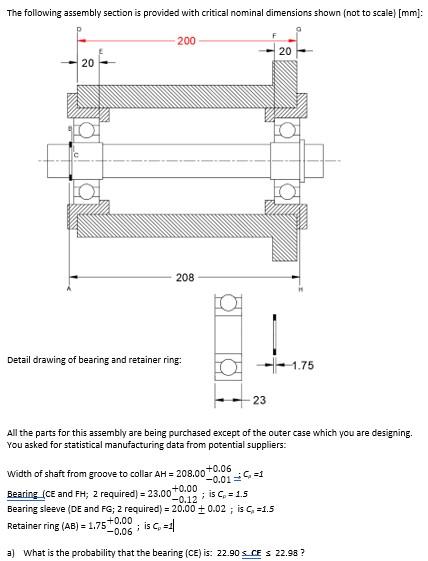

The following assembly section is provided with critical nominal dimensions shown (not to scale) [mm]: 200 - 2011 20 208 Detail drawing of bearing and retainer ring: 011-1.75 23 All the parts for this assembly are being purchased except of the outer case which you are designing. You asked for statistical manufacturing data from potential suppliers: Width of shaft from groove to collar AH = 208.00+0.06 Bearing_/CE and FH; 2 required) = 23.00 +0.00 -0.12 is C = 1.5 Bearing sleeve (DE and FG; 2 required) = 20.00 +0.02 ; is C -1.5 Retainer ring (AB) = 1.75 +0.00 -0.06 -0.01 31 i iis a) What is the probability that the bearing (CE) is: 22.90 .CE S 22.98 ?
