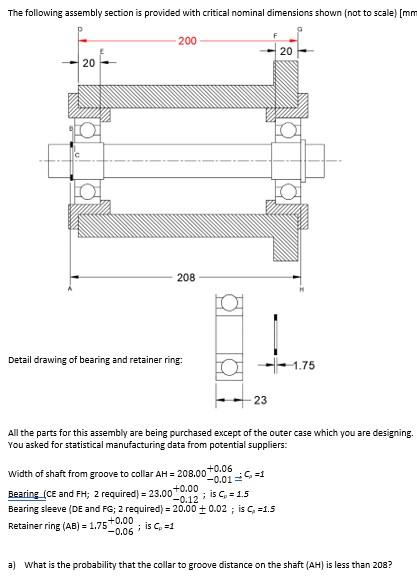

The following assembly section is provided with critical nominal dimensions shown (not to scale) [mm 200 -2011 20 208 Detail drawing of bearing and retainer ring: 0 -1.75 23 All the parts for this assembly are being purchased except of the outer case which you are designing. You asked for statistical manufacturing data from potential suppliers: Width of shaft from groove to collar AH = 208.00 +0.06 Bearing_(CE and FH; 2 required) = 23.00 +0.00 -0.12 ; is C = 15 Bearing sleeve (DE and FG; 2 required) = 20.00 +0.02 ; is C -1.5 Retainer ring (AB) = 1 -0.06 ; is = 1 -0.01-62 1.75+0.00 a) What is the probability that the collar to groove distance on the shaft (AH) is less than 208?
