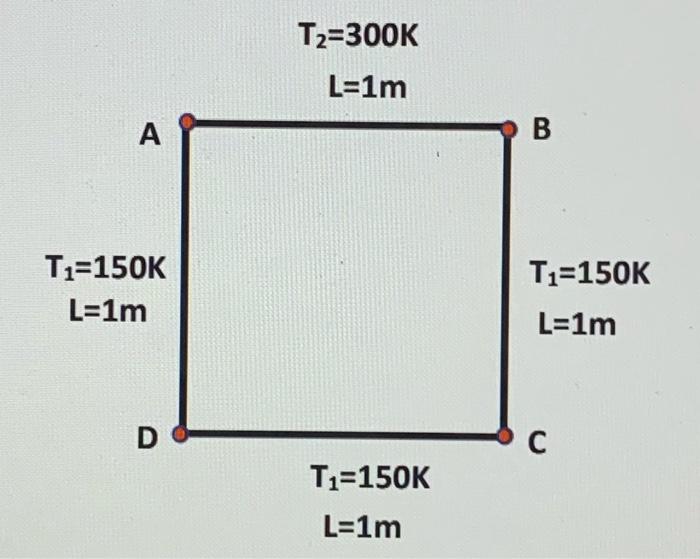

T2=300K L=1m A B T1=150K L=1m T1=150K L=1m D C T1=150K L=1m

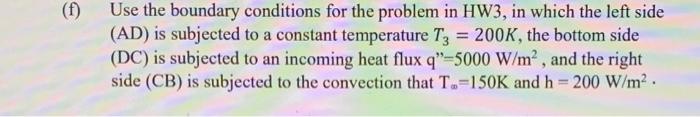

(f) Use the boundary conditions for the problem in HW3, in which the left side (AD) is subjected to a constant temperature T3 = 2006, the bottom side (DC) is subjected to an incoming heat flux qº=5000 W/m², and the right side (CB) is subjected to the convection that T.=150K and h=200 W/m². 9

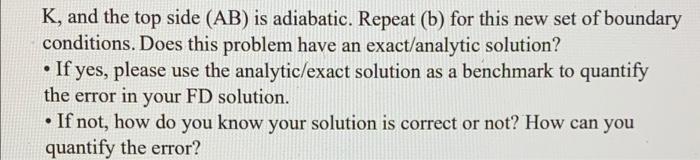

K, and the top side (AB) is adiabatic. Repeat (b) for this new set of boundary conditions. Does this problem have an exact/analytic solution? • If yes, please use the analytic/exact solution as a benchmark to quantify the error in your FD solution. • If not, how do you know your solution is correct or not? How can you quantify the error?
