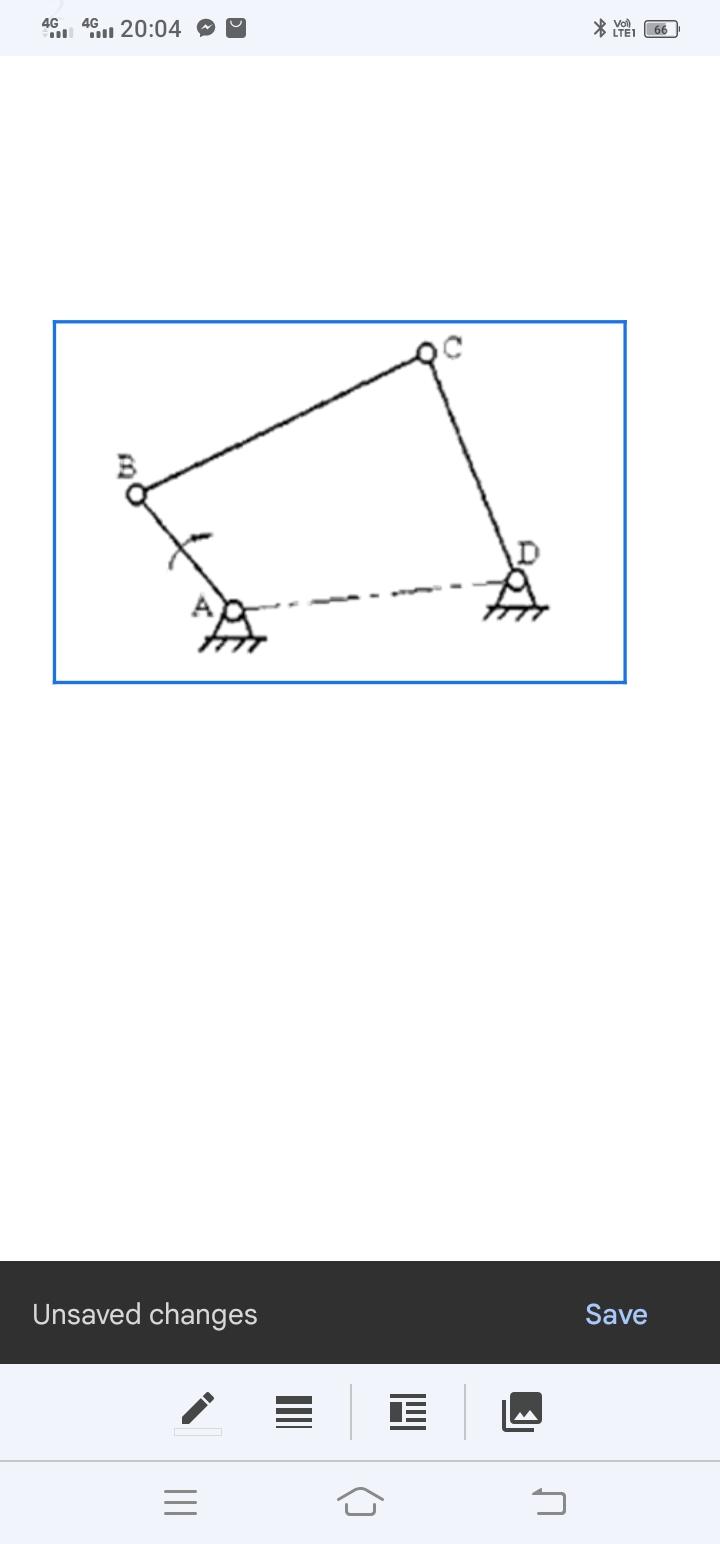

Hinge four-bar mechanism as shown in the picture. The length of
each link are known . AB=50mm， BC=110mm， CD=80mm， AD=100mm. (12
points)
(1) Calculating and analyzing the mechanism to make sure is there a
crank in it?
(2) If we choose AB as the frame, what kind of the linkage can we
get? How about BC and CD?
