Show all work, units, equations, tables, and the FBD. A steel bracket is loaded as shown. Calculate the combined stresse

Post by answerhappygod »

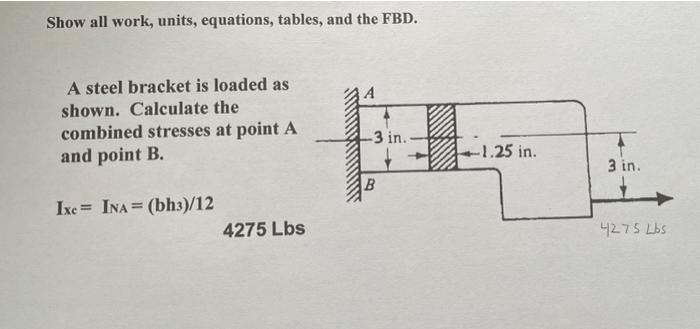

Show All Work Units Equations Tables And The Fbd A Steel Bracket Is Loaded As Shown Calculate The Combined Stresse 1
Show All Work Units Equations Tables And The Fbd A Steel Bracket Is Loaded As Shown Calculate The Combined Stresse 1 (24.92 KiB) Viewed 36 times
Show all work, units, equations, tables, and the FBD. A steel bracket is loaded as shown. Calculate the combined stresses at point A and point B. -3 in. +1.25 in. 3 in. B Ixe = InA= (bh3)/12 4275 Lbs 4275 Lbs
