ETC 306 Strength of Materials Module 5 Homework Assignment A beam is supported and loaded as shown below. 10 180 20 10 i

Post by answerhappygod »

Etc 306 Strength Of Materials Module 5 Homework Assignment A Beam Is Supported And Loaded As Shown Below 10 180 20 10 I 1
Etc 306 Strength Of Materials Module 5 Homework Assignment A Beam Is Supported And Loaded As Shown Below 10 180 20 10 I 1 (27.52 KiB) Viewed 47 times

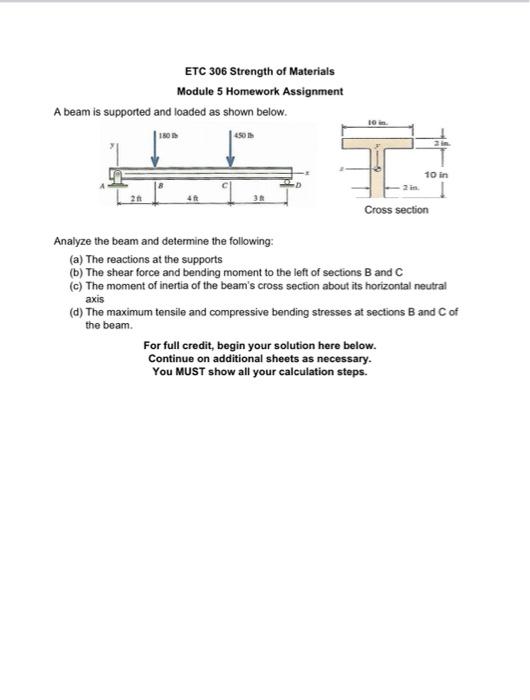

ETC 306 Strength of Materials Module 5 Homework Assignment A beam is supported and loaded as shown below. 10 180 20 10 in 2in1 Cross section axis Analyze the beam and determine the following: (a) The reactions at the supports (b) The shear force and bending moment to the left of sections B and C (c) The moment of inertia of the beam's cross section about its horizontal neutral (d) The maximum tensile and compressive bending stresses at sections B and Cof the beam. For full credit, begin your solution here below. Continue on additional sheets as necessary. You MUST show all your calculation steps.
