The cantilever beam is subjected to the point loads P1 = 2.3 kN and P2 = 4.1 kN. 250 mm 250 mm 100 mm 20 mm 70 mm ULB 20
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The cantilever beam is subjected to the point loads P1 = 2.3 kN and P2 = 4.1 kN. 250 mm 250 mm 100 mm 20 mm 70 mm ULB 20

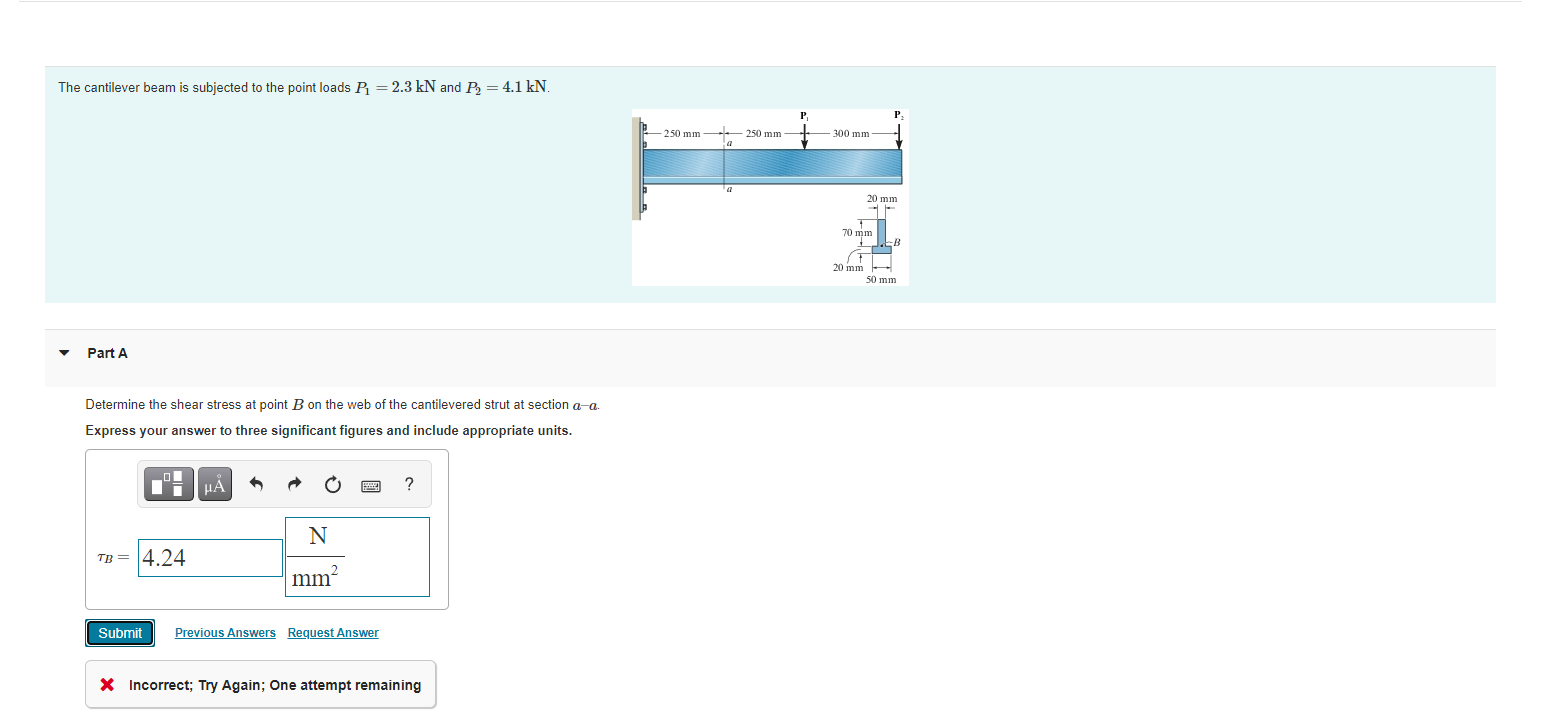

The cantilever beam is subjected to the point loads P1 = 2.3 kN and P2 = 4.1 kN. 250 mm 250 mm 100 mm 20 mm 70 mm ULB 20 mm 50 mm Part A Determine the shear stress at point B on the web of the cantilevered strut at section a-a. Express your answer to three significant figures and include appropriate units. μΑ N TB= 4.24 mm Submit Previous Answers Request Answer X Incorrect; Try Again; One attempt remaining
