For the beam shown on the previous question, determine the values and location of the maximum compressive bending stress

[answerhappygod]

For The Beam Shown On The Previous Question Determine The Values And Location Of The Maximum Compressive Bending Stress 1 (76.99 KiB) Viewed 33 times

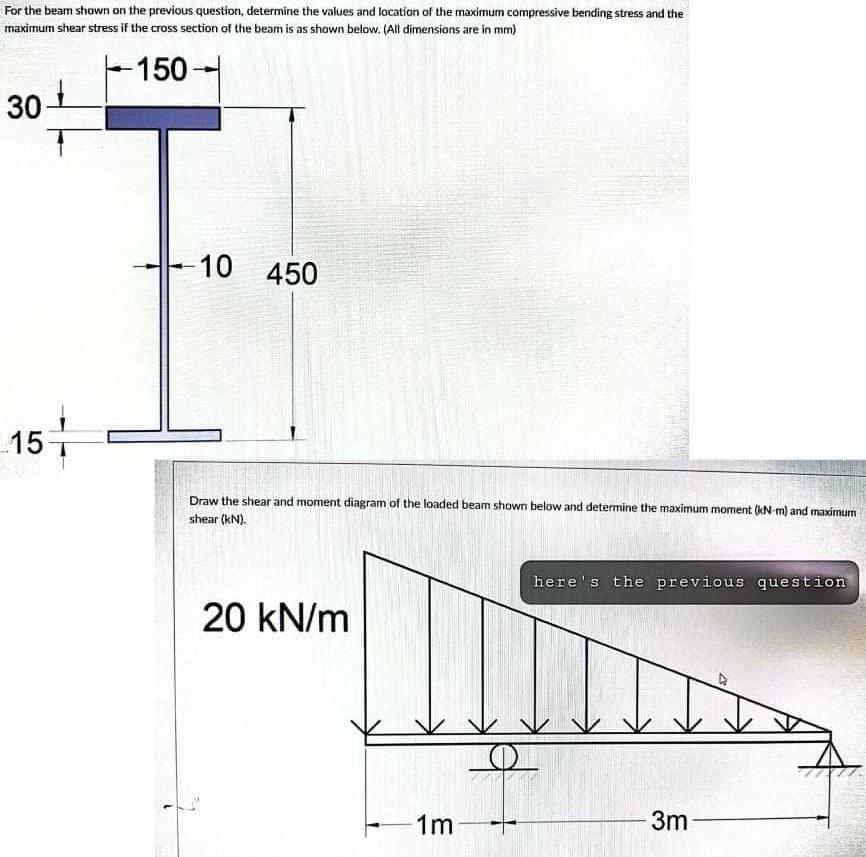

For the beam shown on the previous question, determine the values and location of the maximum compressive bending stress and the maximum shear stress if the cross section of the beam is as shown below. (All dimensions are in mm) -150-- 30 -10 450 15 Draw the shear and moment diagram of the loaded beam shown below and determine the maximum moment (kN-m) and maximum shear (kN). here's the previous question 20 kN/m 1m 3m
