Part A Consider the beam shown in (Figure 1). The nails are located on each side of the beam and are spaced 100 mm apart

Post by answerhappygod »

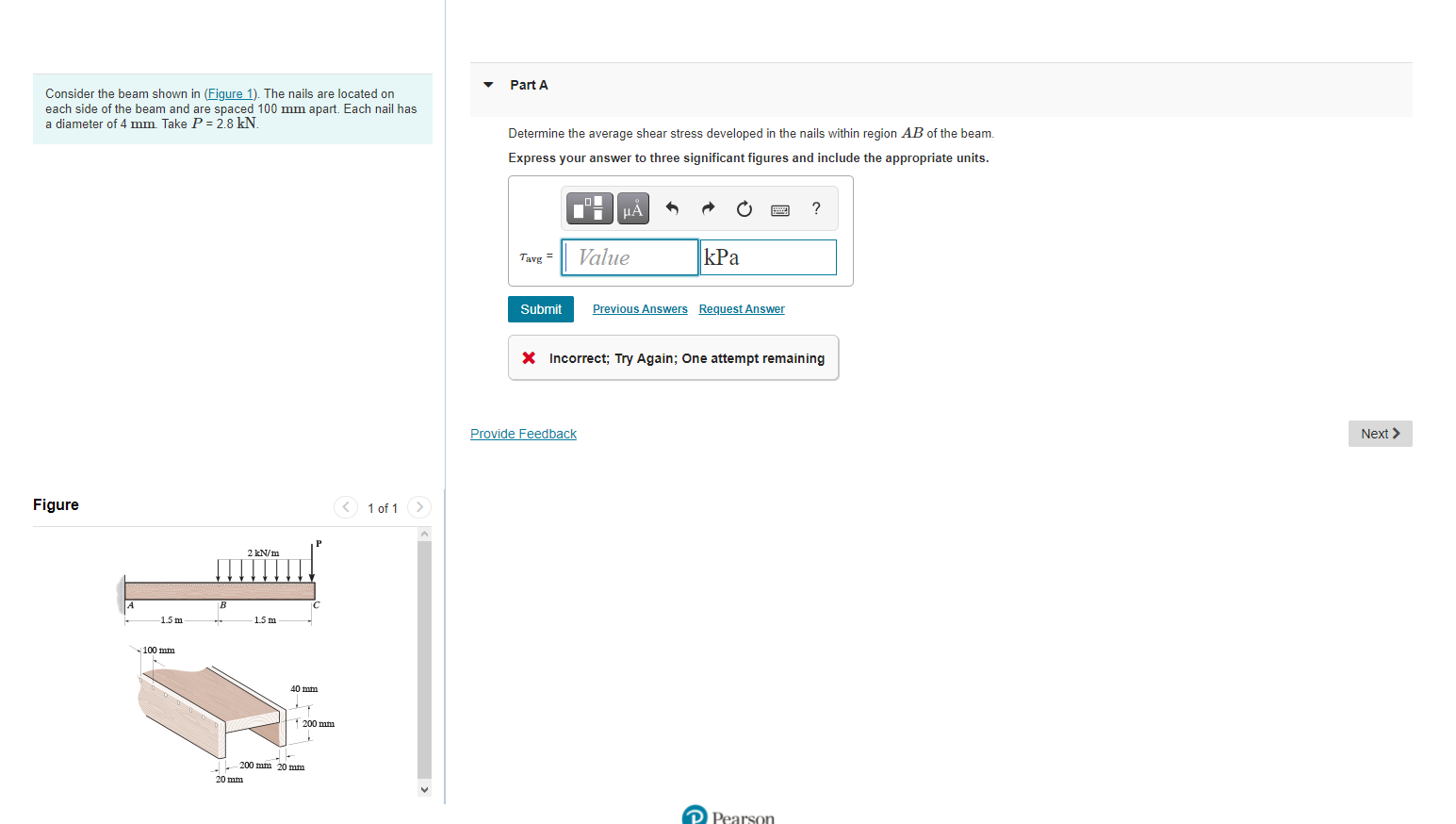

Part A Consider The Beam Shown In Figure 1 The Nails Are Located On Each Side Of The Beam And Are Spaced 100 Mm Apart 1
Part A Consider The Beam Shown In Figure 1 The Nails Are Located On Each Side Of The Beam And Are Spaced 100 Mm Apart 1 (84.56 KiB) Viewed 49 times
Part A Consider the beam shown in (Figure 1). The nails are located on each side of the beam and are spaced 100 mm apart. Each nail has a diameter of 4 mm Take P = 2.8 kN. Determine the average shear stress developed in the nails within region AB of the beam. Express your answer to three significant figures and include the appropriate units. 0 UA ? Tavg = Value kPa Submit Previous Answers Request Answer X Incorrect; Try Again; One attempt remaining Provide Feedback Next > Figure < 1 of 1 > 2 kN/m 1.5 m 1.5 m 100 mm 40 mm 1200 mm -200 mm 20 mm 20 mm P Pearson
