< Transverse Shear in Bending Problem 7.32 15 of 15 The double T-beam is fabricated by welding the three plates together

Post by answerhappygod »

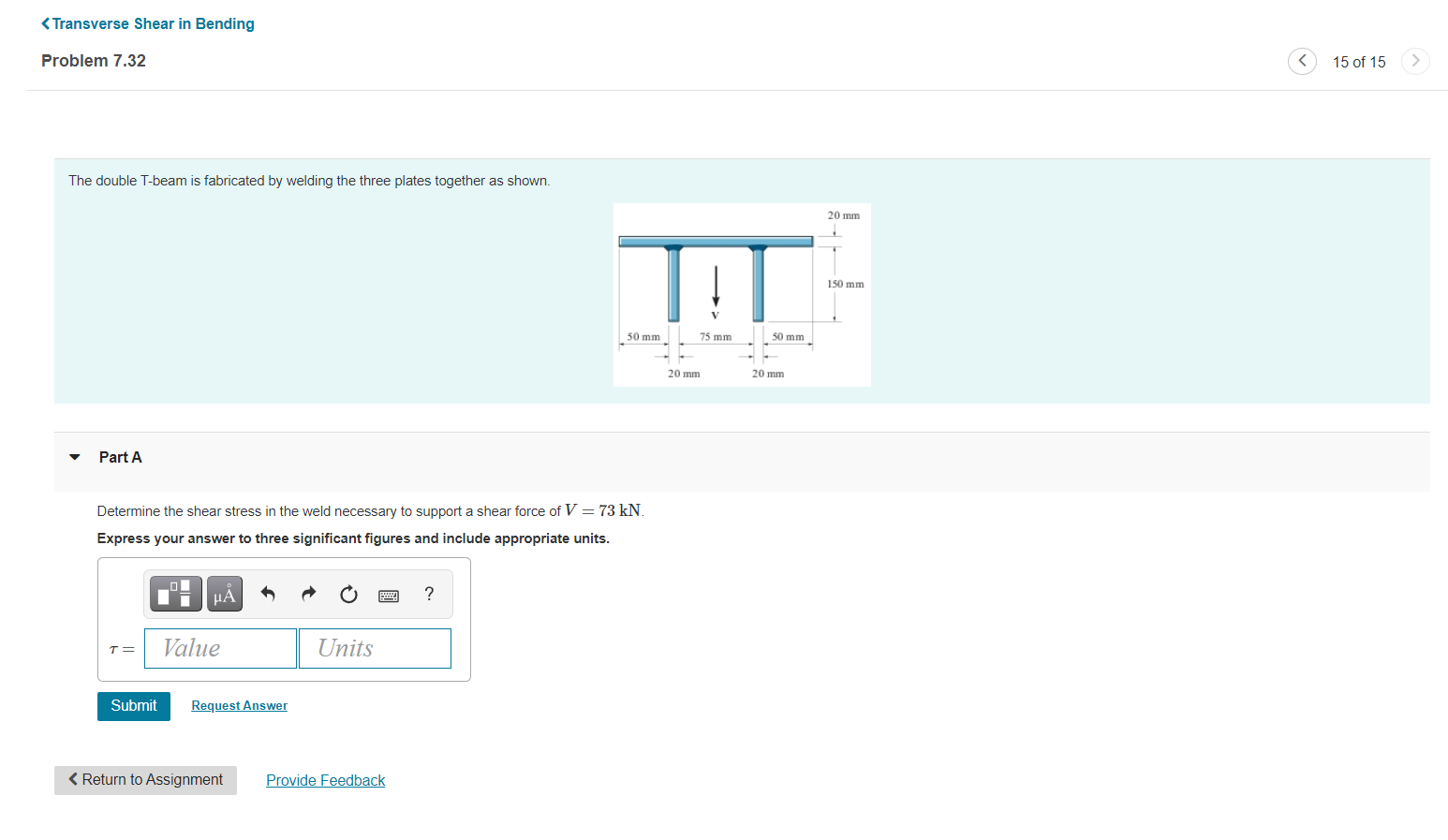

Transverse Shear In Bending Problem 7 32 15 Of 15 The Double T Beam Is Fabricated By Welding The Three Plates Together 1
Transverse Shear In Bending Problem 7 32 15 Of 15 The Double T Beam Is Fabricated By Welding The Three Plates Together 1 (48.29 KiB) Viewed 33 times
< Transverse Shear in Bending Problem 7.32 15 of 15 The double T-beam is fabricated by welding the three plates together as shown. 20 mm TT 150 mm 50 mm 75 mm 50 mm 20 mm 20 mm Part A Determine the shear stress in the weld necessary to support a shear force of V = 73 kN. Express your answer to three significant figures and include appropriate units. 01 i μΑ ? T= Value Units Submit Request Answer < Return to Assignment Provide Feedback
