Consider the following hollowed square plate such that: • the top is insulated • the right side and the left side have c

Post by answerhappygod »

Consider The Following Hollowed Square Plate Such That The Top Is Insulated The Right Side And The Left Side Have C 1
Consider The Following Hollowed Square Plate Such That The Top Is Insulated The Right Side And The Left Side Have C 1 (38.23 KiB) Viewed 35 times

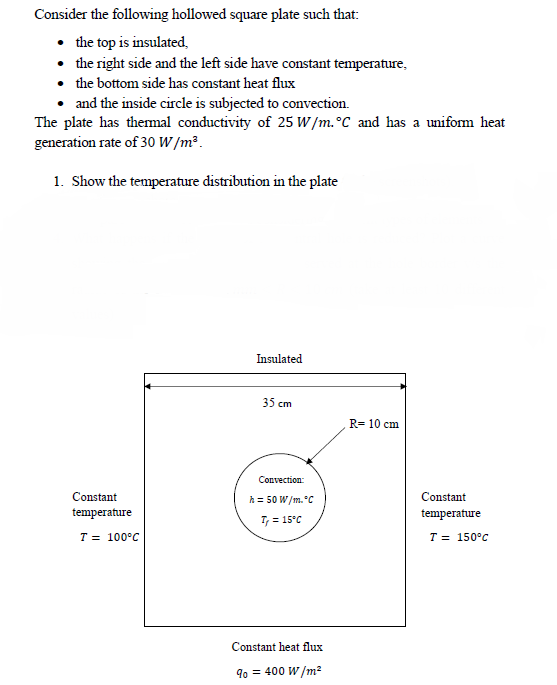

Consider the following hollowed square plate such that: • the top is insulated • the right side and the left side have constant temperature, • the bottom side has constant heat flux and the inside circle is subjected to convection. The plate has thermal conductivity of 25 W/m.°C and has a uniform heat generation rate of 30 W/m. 1. Show the temperature distribution in the plate Insulated 35 cm R= 10 cm Convection: Constant temperature T = 100°C h = 50 W/m.°C T= 15°C Constant temperature T = 150°C Constant heat flux 9. = 400 W/m2
