QUESTION - 2: Draw the following orthographic views of the object shown in Figure 22: a FRONT view from A - a SIDE view

Post by answerhappygod »

Question 2 Draw The Following Orthographic Views Of The Object Shown In Figure 22 A Front View From A A Side View 1
Question 2 Draw The Following Orthographic Views Of The Object Shown In Figure 22 A Front View From A A Side View 1 (134.17 KiB) Viewed 20 times

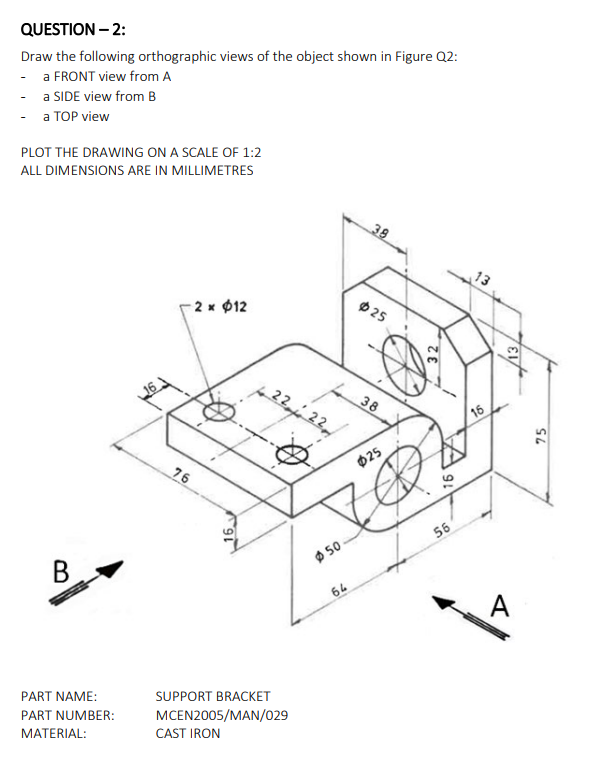

QUESTION - 2: Draw the following orthographic views of the object shown in Figure 22: a FRONT view from A - a SIDE view from B - a TOP view PLOT THE DRAWING ON A SCALE OF 1:2 ALL DIMENSIONS ARE IN MILLIMETRES 39 13 -2 * 012 25 ELA 38 16 75 76 025 16 56 50 B 64 A PART NAME: PART NUMBER: MATERIAL: SUPPORT BRACKET MCEN2005/MAN/029 CAST IRON
