Determine the shear force and bending moment and draw the diagrams for the beam below. Clearly indicate the magnitude an

Post by answerhappygod »

Determine The Shear Force And Bending Moment And Draw The Diagrams For The Beam Below Clearly Indicate The Magnitude An 1
Determine The Shear Force And Bending Moment And Draw The Diagrams For The Beam Below Clearly Indicate The Magnitude An 1 (38.14 KiB) Viewed 27 times

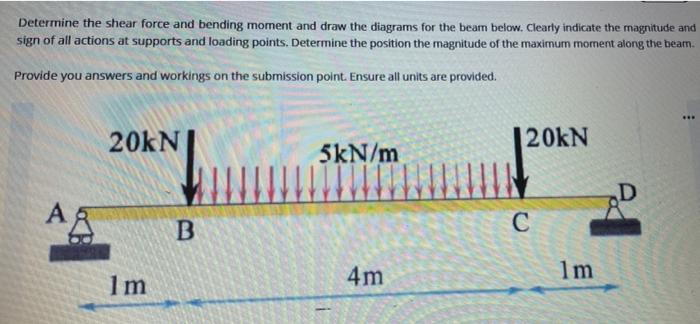

Determine the shear force and bending moment and draw the diagrams for the beam below. Clearly indicate the magnitude and sign of all actions at supports and loading points. Determine the position the magnitude of the maximum moment along the beam. Provide you answers and workings on the submission point. Ensure all units are provided. 20kN 20kN 5kN/m D А АА. B С 1m 4m 1 m
