С Area: A1 L1 F B Area: A2 L2 A The figure (not drawn to scale) shows a prismatic bar subjected to the axial (direct) fo

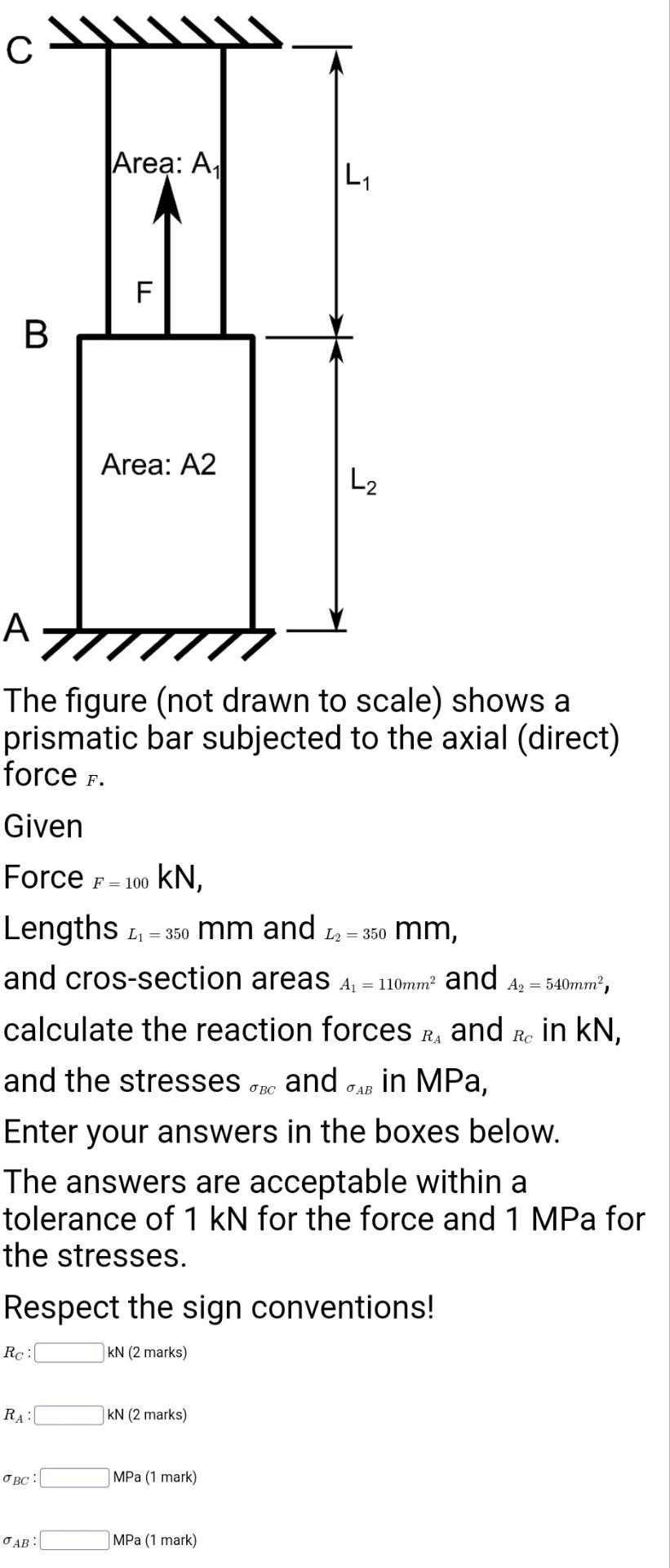

С Area: A1 L1 F B Area: A2 L2 A The figure (not drawn to scale) shows a prismatic bar subjected to the axial (direct) force F. Given Force F = 100 KN, OBC О Lengths 11 = 350 mm and L2 = 350 mm, and cros-section areas A = 110mm? and A, = 540mm, calculate the reaction forces RA and Rc in KN, and the stresses ope and AB in MPa, Enter your answers in the boxes below. The answers are acceptable within a tolerance of 1 kN for the force and 1 MPa for the stresses. Respect the sign conventions! RC: KN (2 marks) RA: KN (2 marks) OBC: MPa (1 mark) OAB: MPa (1 mark)
