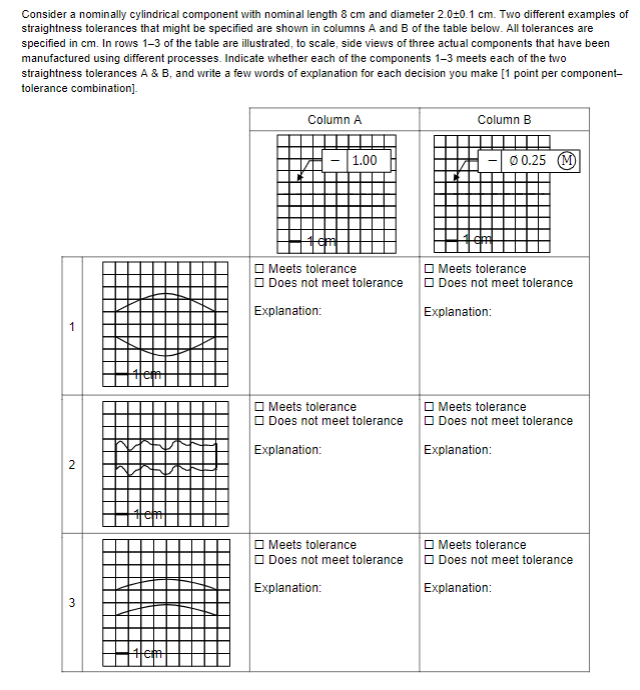

Consider a nominally cylindrical component with nominal length 8 cm and diameter 2.0:0.1 cm. Two different examples of straightness tolerances that might be specified are shown in columns A and B of the table below. All tolerances are specified in cm. In rows 1-3 of the table are illustrated to scale, side views of three actual components that have been manufactured using different processes. Indicate whether each of the components 1-3 meets each of the two straightness tolerances A & B. and write a few words of explanation for each decision you make [1 point per component- tolerance combination] Column A Column B 1.00 0 0.25 M Meets tolerance Meets tolerance Does not meet tolerance Does not meet tolerance Explanation: Explanation: He Meets tolerance Does not meet tolerance Explanation: Meets tolerance Does not meet tolerance Explanation: N temul Meets tolerance Meets tolerance Does not meet tolerance Does not meet tolerance Explanation: Explanation: نيا 3 1et
