Design the gating system for the given grey iron component neglecting the riser/feeding system.
Assume the fluidity of the material is 32 inch. Efficiency coefficients C =0.9, Density of Solid Cast iron
=7.80 X 10‐6 kg/mm3 & Density of liquid Cast iron =6.90 X 10‐6 kg/mm3
.

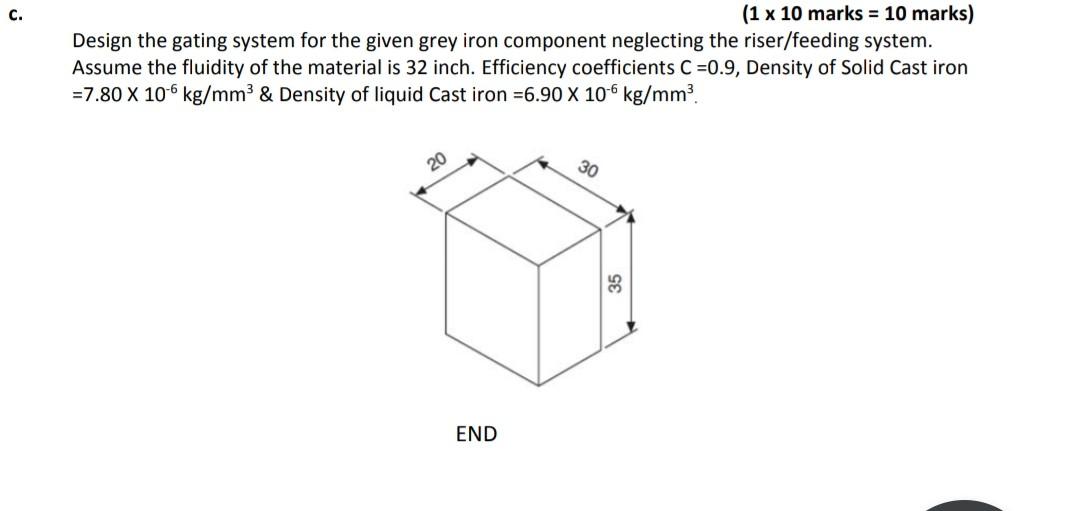

Design The Gating System For The Given Grey Iron Component Neglecting The Riser Feeding System Assume The Fluidity Of 1 (36.58 KiB) Viewed 43 times
C. (1 x 10 marks = 10 marks) Design the gating system for the given grey iron component neglecting the riser/feeding system. Assume the fluidity of the material is 32 inch. Efficiency coefficients C =0.9, Density of Solid Cast iron =7.80 X 106 kg/mm3 & Density of liquid Cast iron =6.90 x 10-6 kg/mm 20 30 35 END
