(a) A cyclinder is made of two different materials which is aluminium alloy and steel alloy, respectively. The cylinder

Post by answerhappygod »

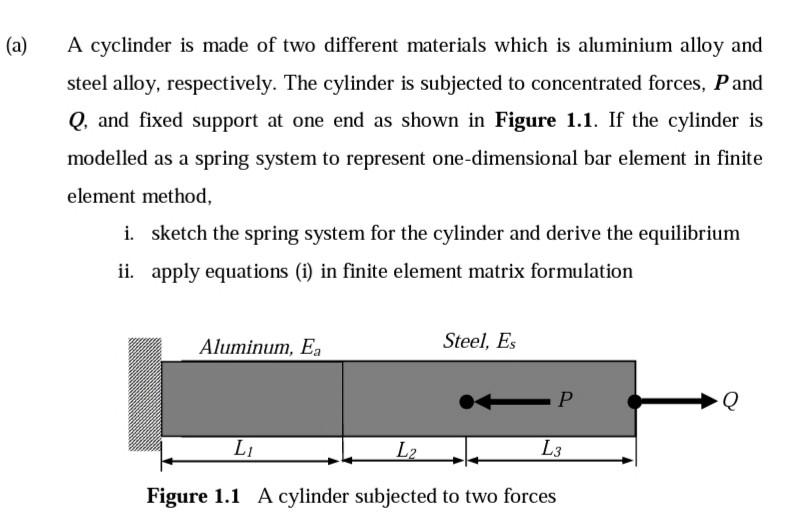

A A Cyclinder Is Made Of Two Different Materials Which Is Aluminium Alloy And Steel Alloy Respectively The Cylinder 1
A A Cyclinder Is Made Of Two Different Materials Which Is Aluminium Alloy And Steel Alloy Respectively The Cylinder 1 (49.41 KiB) Viewed 36 times
(a) A cyclinder is made of two different materials which is aluminium alloy and steel alloy, respectively. The cylinder is subjected to concentrated forces, Pand Q, and fixed support at one end as shown in Figure 1.1. If the cylinder is modelled as a spring system to represent one-dimensional bar element in finite element method, i. sketch the spring system for the cylinder and derive the equilibrium ii. apply equations (i) in finite element matrix formulation Aluminum, Ea Steel, ES Р Li L2 L3 Figure 1.1 A cylinder subjected to two forces
