ANSWER ALL QUESTIONS A cyclinder is made of two different materials which is aluminium alloy and steel alloy, respective

Post by answerhappygod »

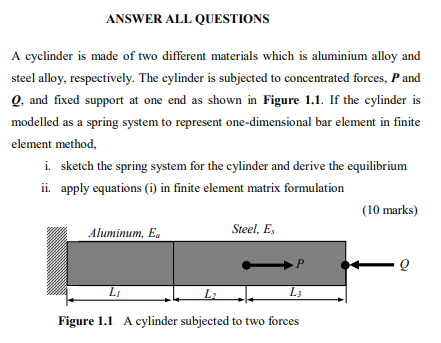

Answer All Questions A Cyclinder Is Made Of Two Different Materials Which Is Aluminium Alloy And Steel Alloy Respective 1
Answer All Questions A Cyclinder Is Made Of Two Different Materials Which Is Aluminium Alloy And Steel Alloy Respective 1 (44.3 KiB) Viewed 30 times
ANSWER ALL QUESTIONS A cyclinder is made of two different materials which is aluminium alloy and steel alloy, respectively. The cylinder is subjected to concentrated forces, P and Q, and fixed support at one end as shown in Figure 1.1. If the cylinder is modelled as a spring system to represent one-dimensional bar element in finite element method, i sketch the spring system for the cylinder and derive the equilibrium ii. apply equations (1) in finite element matrix formulation (10 marks) Aluminum, E. Steel, Es P Q LI L L3 Figure 1.1 A cylinder subjected to two forces
