2. The iron elbow rod shown in Figure T3-2 is subjected to a 500 N force. Replace the 500 N force by: (a) an equivalent

[answerhappygod]

2 The Iron Elbow Rod Shown In Figure T3 2 Is Subjected To A 500 N Force Replace The 500 N Force By A An Equivalent 1 (19.16 KiB) Viewed 33 times

2 The Iron Elbow Rod Shown In Figure T3 2 Is Subjected To A 500 N Force Replace The 500 N Force By A An Equivalent 2 (19.16 KiB) Viewed 33 times

2 The Iron Elbow Rod Shown In Figure T3 2 Is Subjected To A 500 N Force Replace The 500 N Force By A An Equivalent 3 (19.16 KiB) Viewed 33 times

2 The Iron Elbow Rod Shown In Figure T3 2 Is Subjected To A 500 N Force Replace The 500 N Force By A An Equivalent 4 (19.16 KiB) Viewed 33 times

2 The Iron Elbow Rod Shown In Figure T3 2 Is Subjected To A 500 N Force Replace The 500 N Force By A An Equivalent 5 (19.16 KiB) Viewed 33 times

2 The Iron Elbow Rod Shown In Figure T3 2 Is Subjected To A 500 N Force Replace The 500 N Force By A An Equivalent 6 (4.26 KiB) Viewed 33 times

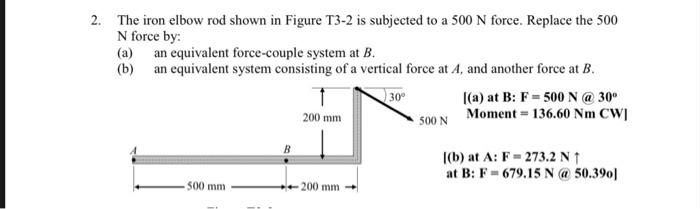

2. The iron elbow rod shown in Figure T3-2 is subjected to a 500 N force. Replace the 500 N force by: (a) an equivalent force-couple system at B. (b) an equivalent system consisting of a vertical force at A, and another force at B. 30° l(a) at B: F-500 N @ 30° 200 mm 500 N Moment - 136.60 Nm CW B (b) at A: F-273.2 N 1 at B: F = 679.15 N @ 50.3901 500 mm 200 mm
