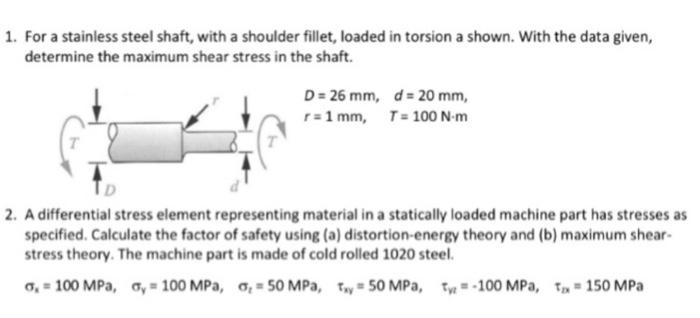

1. For a stainless steel shaft, with a shoulder fillet, loaded in torsion a shown. With the data given, determine the maximum shear stress in the shaft. D = 26 mm, d = 20 mm, r=1 mm, T = 100 Nm 2. A differential stress element representing material in a statically loaded machine part has stresses as specified. Calculate the factor of safety using (a) distortion-energy theory and (b) maximum shear- stress theory. The machine part is made of cold rolled 1020 steel. 0 - 100 MPa, Gy - 100 MPa, 0, -50 MPa, ty = 50 MPa, tv-100 MPa, T = 150 MPa
