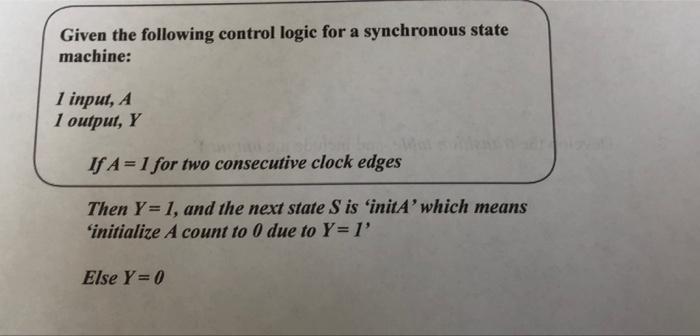

Given the following control logic for a synchronous state machine: 1 input, A 1 outpui, Y If A= 1 for two consecutive clock edges Then Y=1, and the next state S is 'initA' which means 'initialize A count to ( due to Y=l' Else Y=0

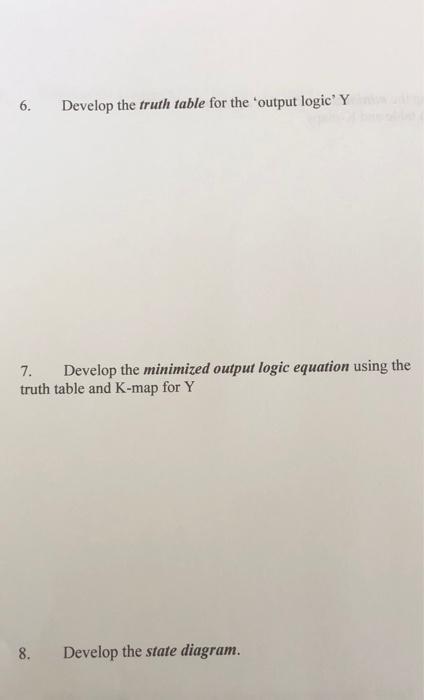

6. Develop the truth table for the output logic' Y 7. Develop the minimized output logic equation using the truth table and K-map for Y 8. Develop the state diagram.

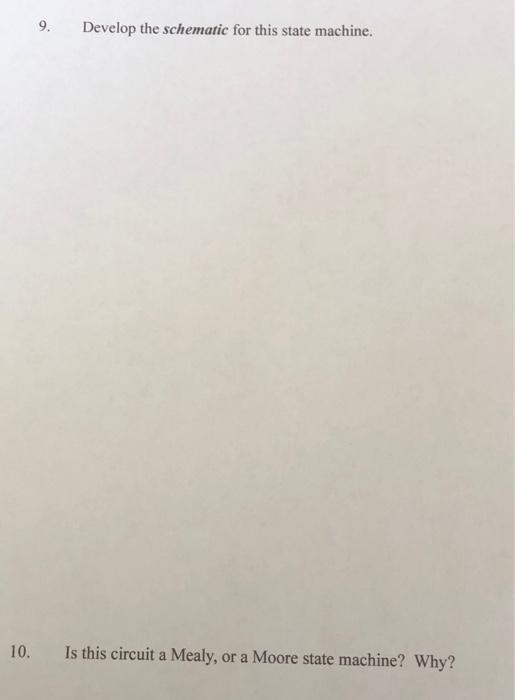

9 . Develop the schematic for this state machine. 10. Is this circuit a Mealy, or a Moore state machine? Why?
