a) Find an expression for vo(t) in the circuit below, when vi(t) = 2 cos 377t, R1 =2 ks2, R2 =10 ks, and C=0.5 uF. (15)

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

a) Find an expression for vo(t) in the circuit below, when vi(t) = 2 cos 377t, R1 =2 ks2, R2 =10 ks, and C=0.5 uF. (15)

Post by answerhappygod »

A Find An Expression For Vo T In The Circuit Below When Vi T 2 Cos 377t R1 2 Ks2 R2 10 Ks And C 0 5 Uf 15 1
A Find An Expression For Vo T In The Circuit Below When Vi T 2 Cos 377t R1 2 Ks2 R2 10 Ks And C 0 5 Uf 15 1 (336.17 KiB) Viewed 40 times

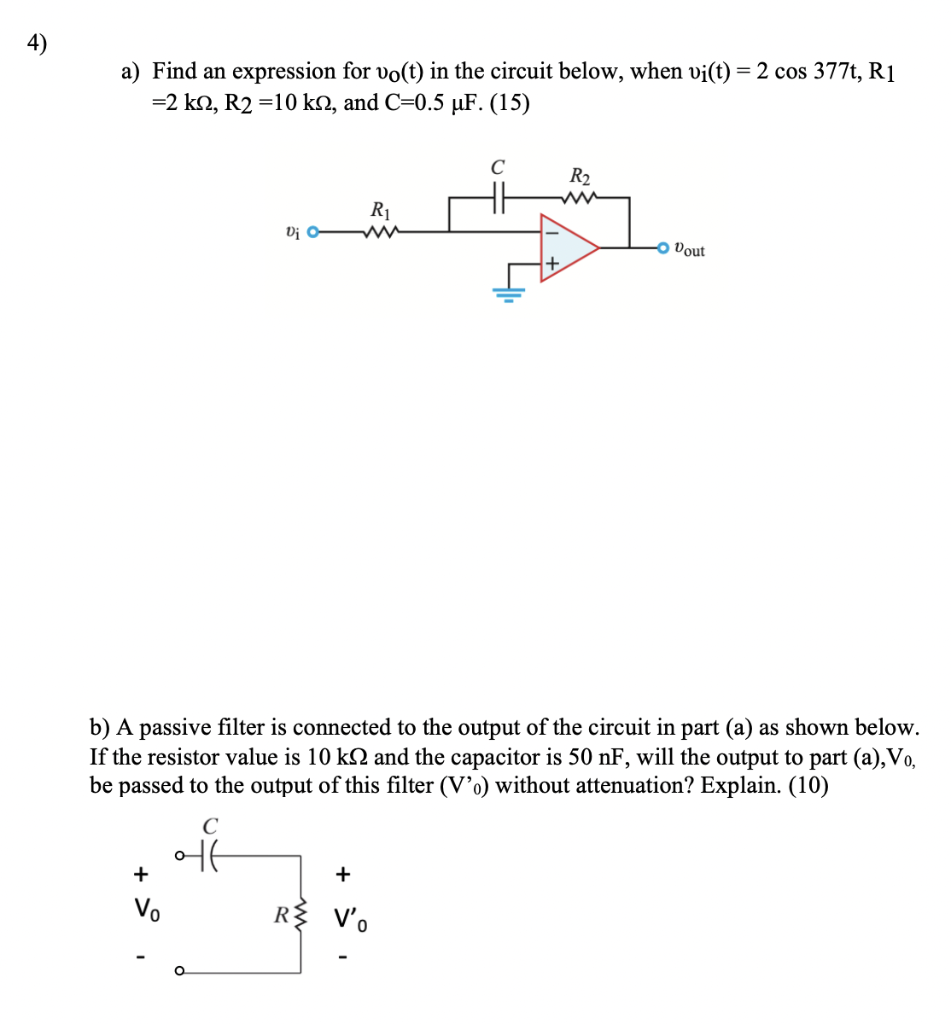

a) Find an expression for vo(t) in the circuit below, when vi(t) = 2 cos 377t, R1 =2 ks2, R2 =10 ks, and C=0.5 uF. (15) с R2 R1 Di 0- Vout + b) A passive filter is connected to the output of the circuit in part (a) as shown below. If the resistor value is 10 kN and the capacitor is 50 nF, will the output to part (a),Vo, be passed to the output of this filter (V’o) without attenuation? Explain. (10) С off + + Vo R? Vo o
