3) The switch in the circuit below had been in position 1 for a long time until it was moved to position 2 at t=0. 10 =6

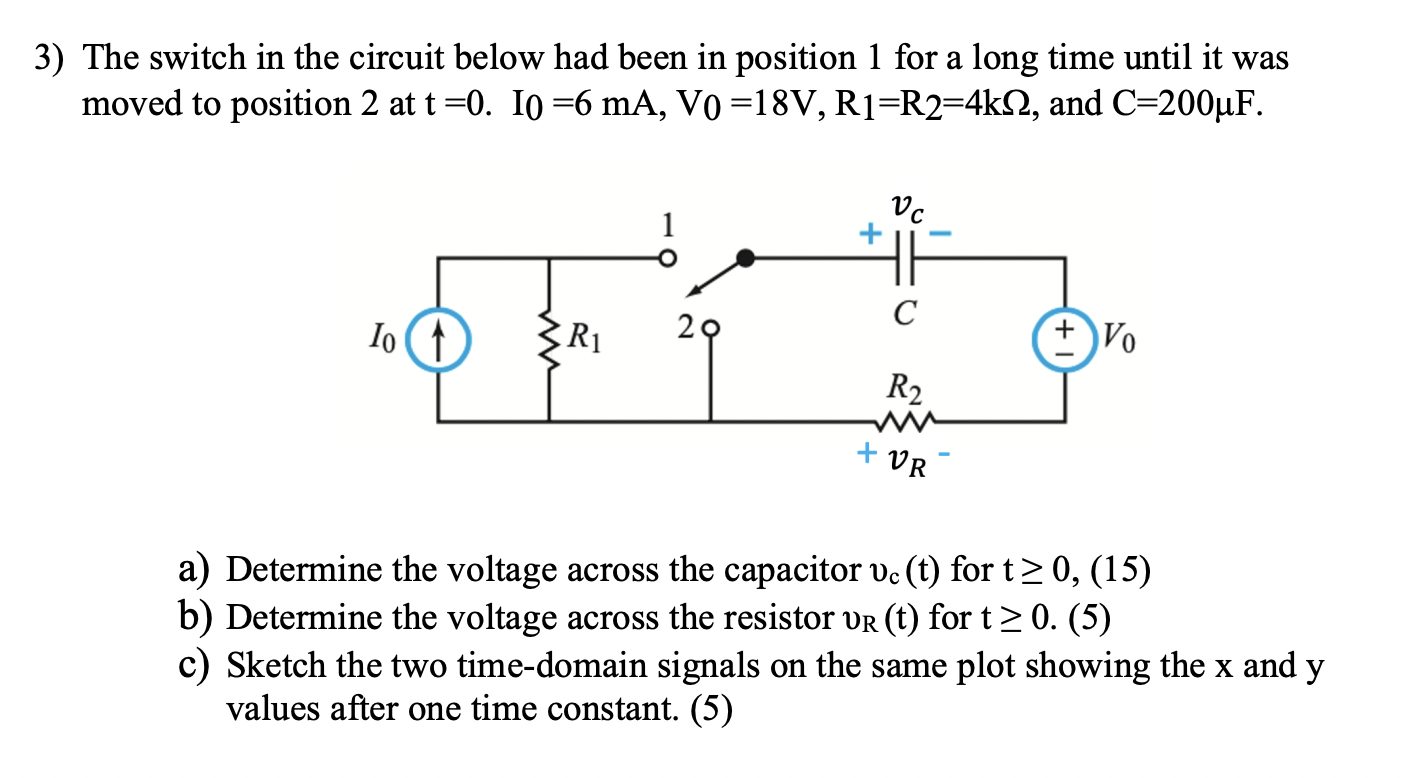

3) The switch in the circuit below had been in position 1 for a long time until it was moved to position 2 at t=0. 10 =6 mA, Vo =18V, R1=R2=4k12, and C=200uF. Vc + 20 C R1 Io ( Vo R2 + OR a) Determine the voltage across the capacitor vc(t) for t>0, (15) b) Determine the voltage across the resistor vr (t) for t > 0. (5) c) Sketch the two time-domain signals on the same plot showing the x and y values after one time constant. (5)
