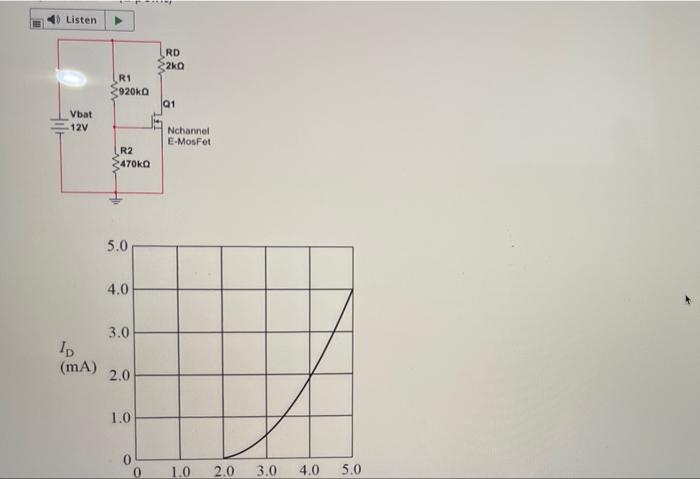

Listen RD 2ko R1 920ko 91 Vbat Hulle 12V Nchannel E-MosFet R2 470k 5.0 4.0 3.0 Тр (mA) 2.0 1.0 0 1.0 2.0 3.0 4.0 5.0

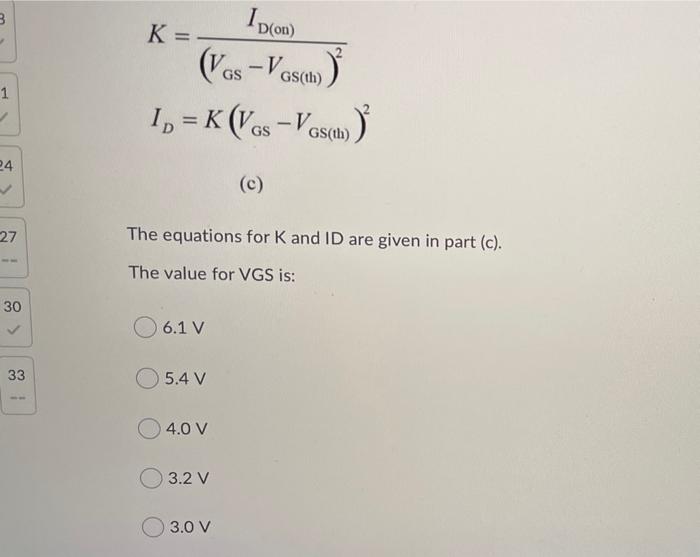

3 I K = D(on) (VGs - Vosch) GS GS(th) 1 10 = K (Vgs - Voscan) ) = GS GS(th 24 (c) 27 The equations for K and ID are given in part (c). The value for VGS is: 30 6.1 V 33 5.4 V 4.0 V 3.2 V 3.0 V
