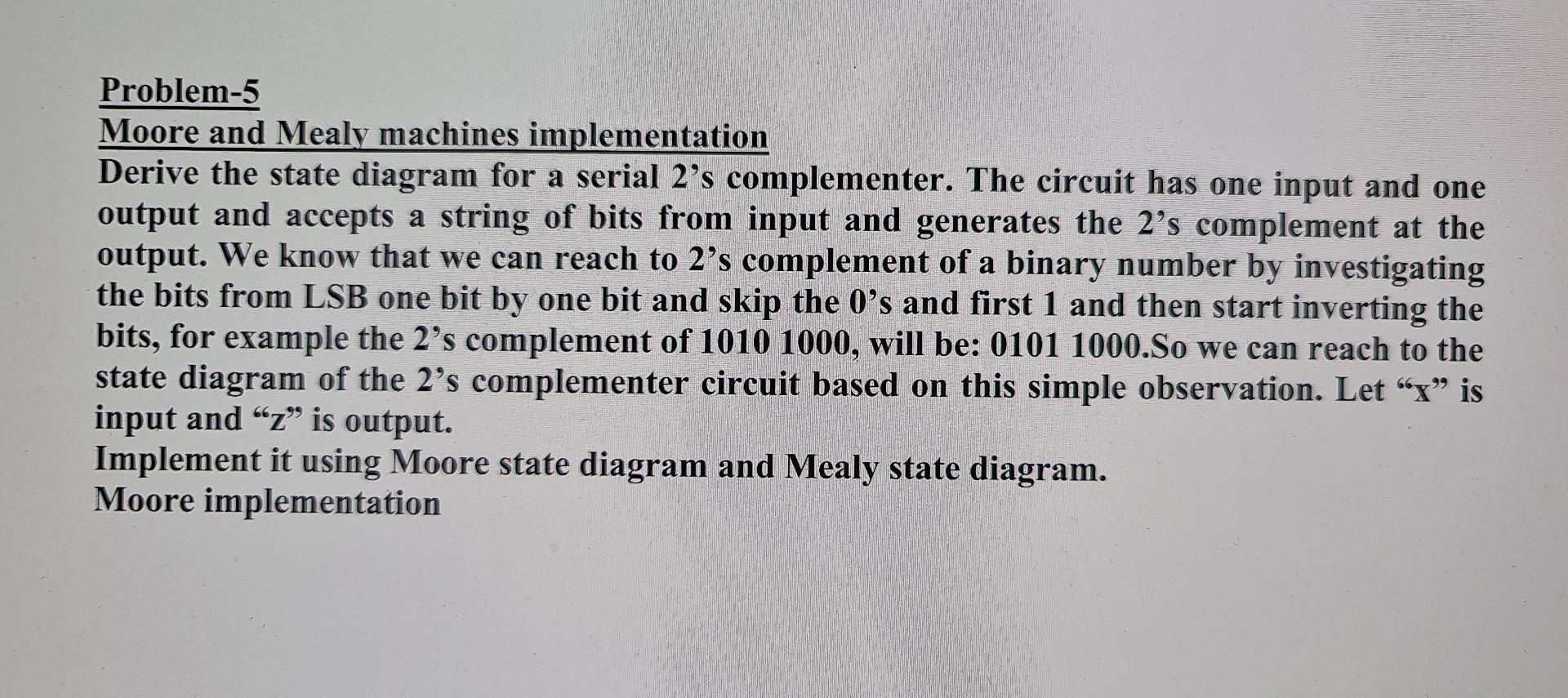

a Problem-5 Moore and Mealy machines implementation Derive the state diagram for a serial 2's complementer. The circuit has one input and one output and accepts a string of bits from input and generates the 2's complement at the output. We know that we can reach to 2’s complement of a binary number by investigating the bits from LSB one bit by one bit and skip the O's and first 1 and then start inverting the bits, for example the 2's complement of 1010 1000, will be: 0101 1000.So we can reach to the state diagram of the 2's complementer circuit based on this simple observation. Let “x” is input and “z” is output. Implement it using Moore state diagram and Mealy state diagram. Moore implementation
