given in series Q3. Draw the overall frequency response of the three systems in series with the same frequency response

Post by answerhappygod »

Given In Series Q3 Draw The Overall Frequency Response Of The Three Systems In Series With The Same Frequency Response 1
Given In Series Q3 Draw The Overall Frequency Response Of The Three Systems In Series With The Same Frequency Response 1 (60.84 KiB) Viewed 48 times

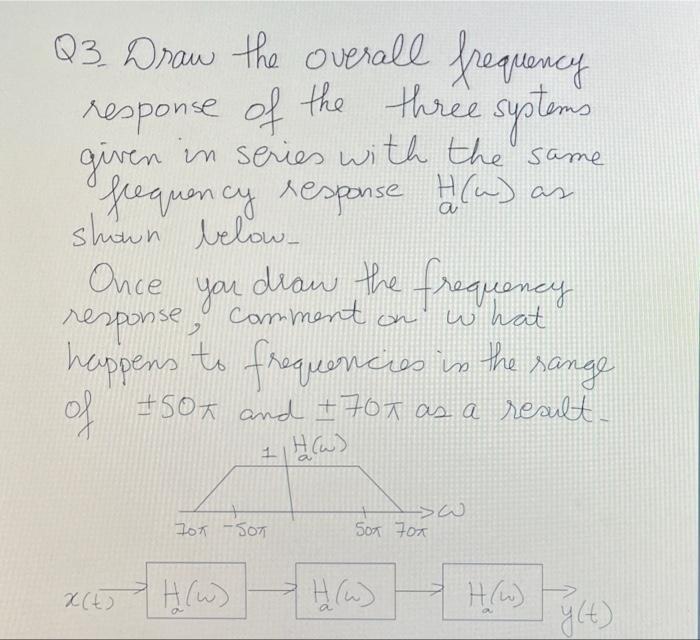

given in series Q3. Draw the overall frequency response of the three systems in series with the same frequency response H(w) as H shown below. Once you draw the frequency response, comment on what happens to frequencies in the range of #sok and 70x as a result. 2 14(w) 11 w + TOT -SOT SOT 702 H. Pylt) X(t) (W)
