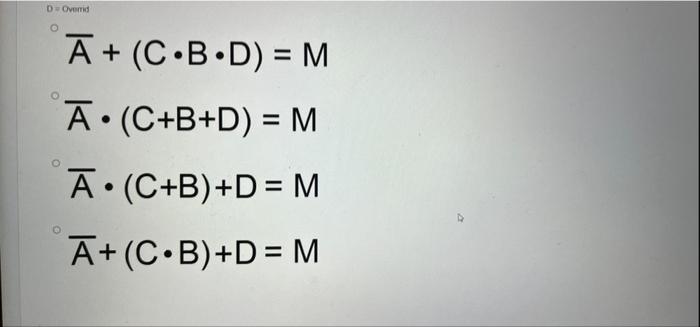

D Overid Ā+ (C•B.D) = M Ā. (C+B+D) = M Ā. (C+B) +D = M Ā+(C.B)+D = M

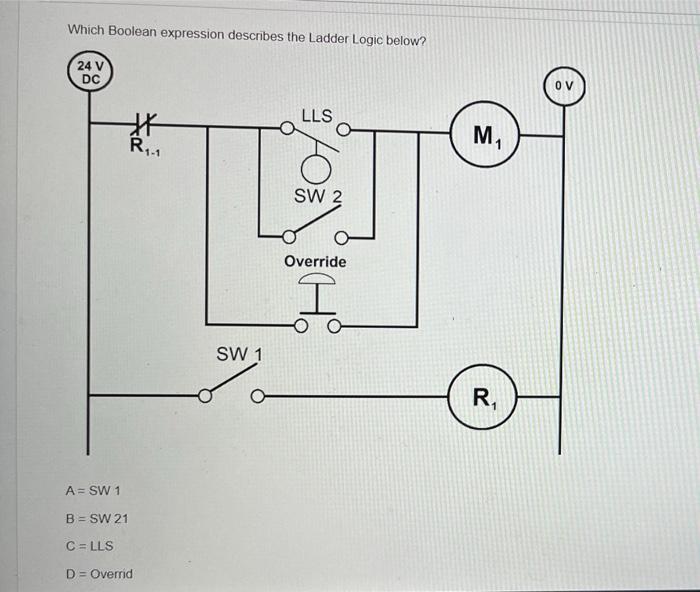

Which Boolean expression describes the Ladder Logic below? 24 V DC ov 我 LLS R. M SW 2 Override I SW 1 20 R ANSW 1 B = SW
-
