- In E 50 Ma V O 10v V 0 20v V 0 100v A Find The Total Capacitance B Find The Voltages V A V C V D 1 (45.25 KiB) Viewed 33 times
= = in = e-50 mA, v. (O)=10V, v. (0) = 20V,V,(0)=100V • a) Find the total capacitance b) Find the voltages v_a, v_c, v_d
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
= = in = e-50 mA, v. (O)=10V, v. (0) = 20V,V,(0)=100V • a) Find the total capacitance b) Find the voltages v_a, v_c, v_d

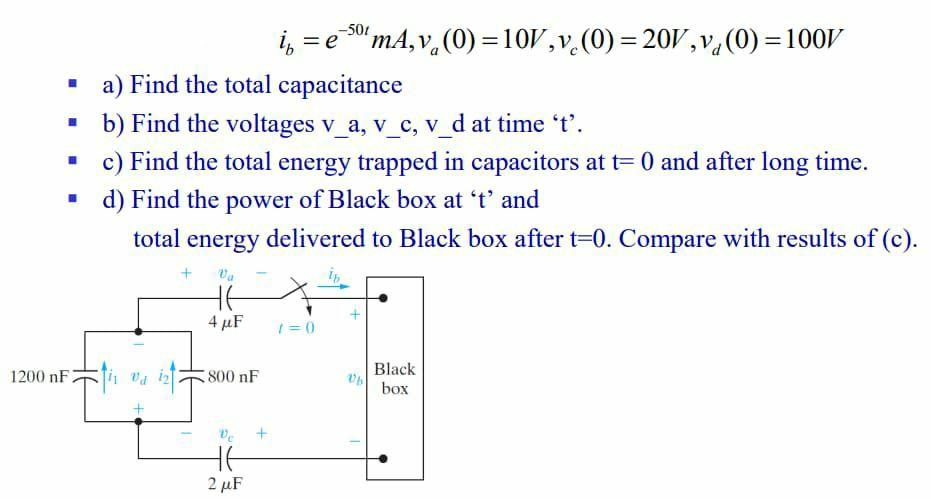

= = in = e-50 mA, v. (O)=10V, v. (0) = 20V,V,(0)=100V • a) Find the total capacitance b) Find the voltages v_a, v_c, v_d at time 't'. c) Find the total energy trapped in capacitors at t= 0 and after long time. d) Find the power of Black box at 't' and total energy delivered to Black box after t=0. Compare with results of (c). + 4F = 0 1200 nF 800 nF UN Black box + + HE 2 F
