V1 7v to 9 v R4 38200 R7 38200 LED2 LED1 PART 2 R6 1 H 100kΩ R5 Q2 BC327 100kΩ Q1 BC327 A B C C3 D E C1 16 47F 474F D4 D
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
V1 7v to 9 v R4 38200 R7 38200 LED2 LED1 PART 2 R6 1 H 100kΩ R5 Q2 BC327 100kΩ Q1 BC327 A B C C3 D E C1 16 47F 474F D4 D

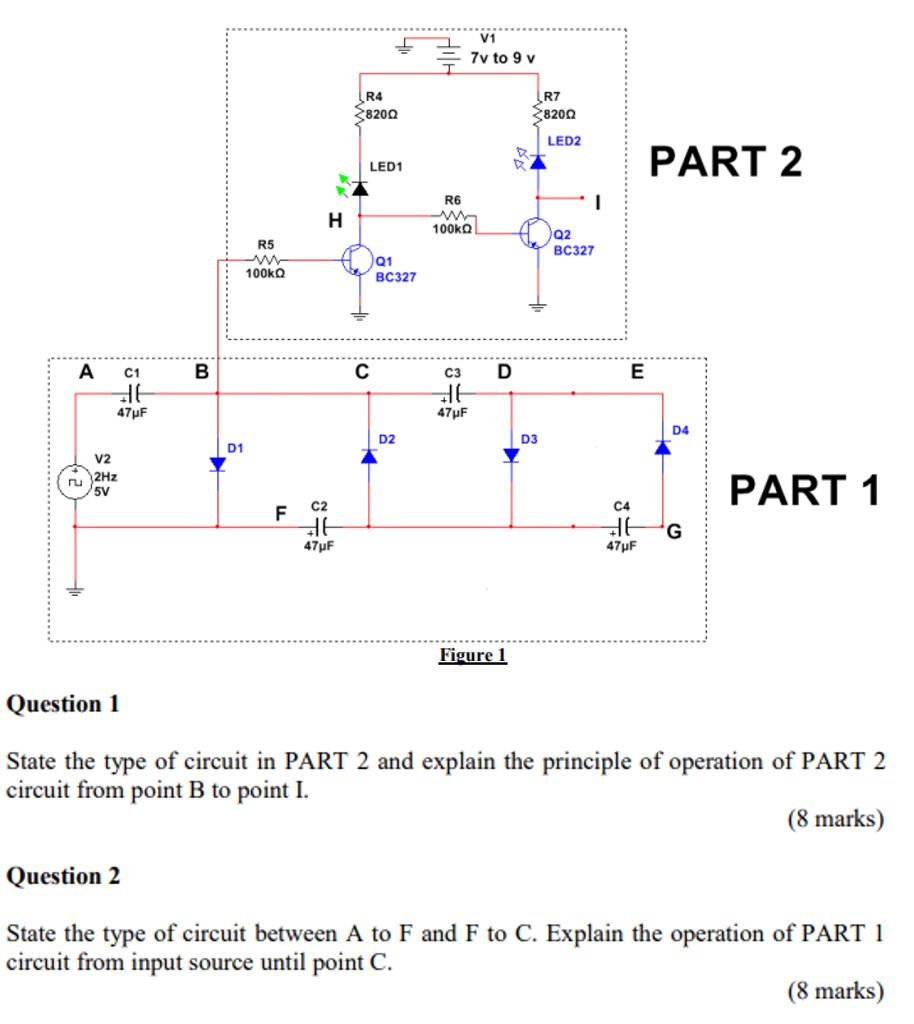

V1 7v to 9 v R4 38200 R7 38200 LED2 LED1 PART 2 R6 1 H 100kΩ R5 Q2 BC327 100kΩ Q1 BC327 A B C C3 D E C1 16 47F 474F D4 D2 D3 D1 29 V2 2Hz 5V PART 1 F C2 C4 16 47 F G 47F Figure 1 Question 1 State the type of circuit in PART 2 and explain the principle of operation of PART 2 circuit from point B to point I. (8 marks) Question 2 State the type of circuit between A to F and F to C. Explain the operation of PART 1 circuit from input source until point C. (8 marks)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
