14.14. A rectangular microstrip patch antenna is operating at 10 GHz with £= 10.2 and dimen- sions of length L = 0.4097

Post by answerhappygod »

14 14 A Rectangular Microstrip Patch Antenna Is Operating At 10 Ghz With 10 2 And Dimen Sions Of Length L 0 4097 1
14 14 A Rectangular Microstrip Patch Antenna Is Operating At 10 Ghz With 10 2 And Dimen Sions Of Length L 0 4097 1 (89.53 KiB) Viewed 37 times

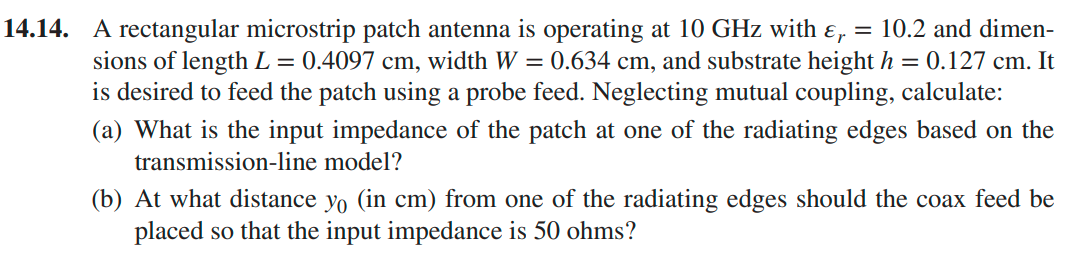

14.14. A rectangular microstrip patch antenna is operating at 10 GHz with £= 10.2 and dimen- sions of length L = 0.4097 cm, width W = 0.634 cm, and substrate height h = 0.127 cm. It is desired to feed the patch using a probe feed. Neglecting mutual coupling, calculate: (a) What is the input impedance of the patch at one of the radiating edges based on the transmission-line model? (b) At what distance yo (in cm) from one of the radiating edges should the coax feed be placed so that the input impedance is 50 ohms?
