Simulate the circuit given below R1 Х . Function generator-XFG1 Waveforms R2 w 47022 XFG1 1000 U1 + COM V2 -6V Hz Signal

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Simulate the circuit given below R1 Х . Function generator-XFG1 Waveforms R2 w 47022 XFG1 1000 U1 + COM V2 -6V Hz Signal

Post by answerhappygod »

1
1 (158.18 KiB) Viewed 49 times

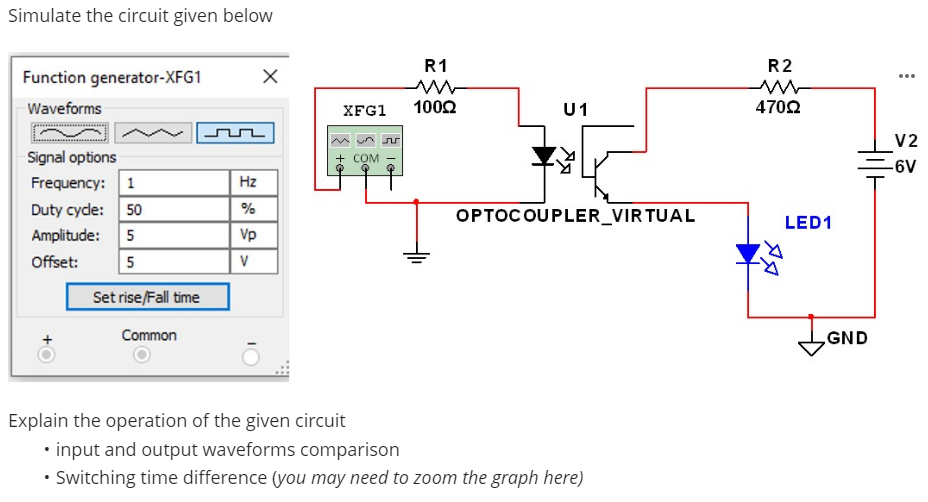

Simulate the circuit given below R1 Х . Function generator-XFG1 Waveforms R2 w 47022 XFG1 1000 U1 + COM V2 -6V Hz Signal options Frequency: 1 Duty cycle: 50 Amplitude: 5 Offset: 5 Set rise/Fall time OPTOCOUPLER_VIRTUAL LED1 Vp V Common GND Explain the operation of the given circuit • input and output waveforms comparison Switching time difference (you may need to zoom the graph here)
