Please answer both questions

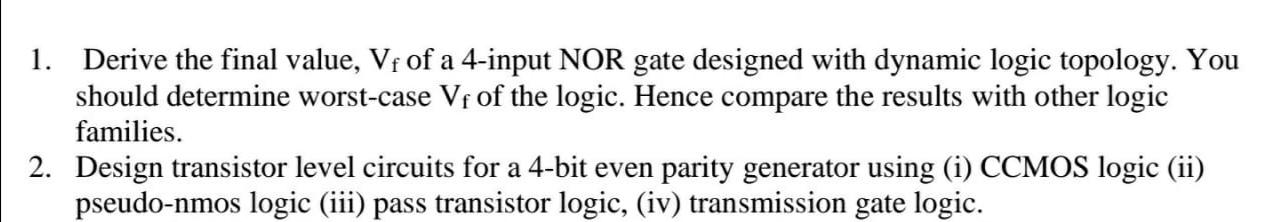

1. Derive the final value, Vf of a 4-input NOR gate designed with dynamic logic topology. You should determine worst-case Ve of the logic. Hence compare the results with other logic families. 2. Design transistor level circuits for a 4-bit even parity generator using (i) CCMOS logic (ii) pseudo-nmos logic (iii) pass transistor logic, (iv) transmission gate logic.
