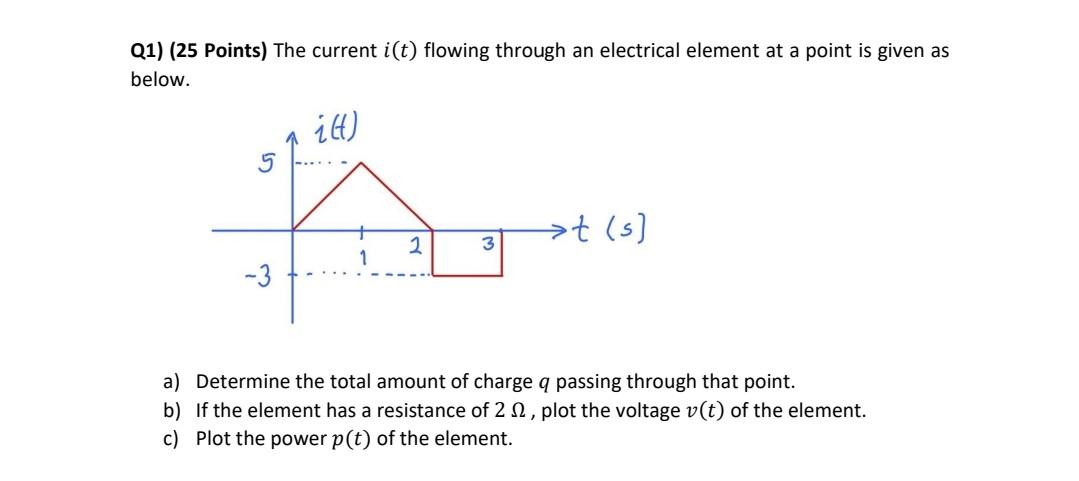

Q1) (25 Points) The current i(t) flowing through an electrical element at a point is given as below. iH) 5 >t (5) 2 3 -3 a) Determine the total amount of charge a passing through that point. b) If the element has a resistance of 2 12 , plot the voltage v(t) of the element. c) Plot the power p(t) of the element.
