Q1: [05] It is known for a K-type thermocouple that thermoelectric voltage at 50 °C and 500 °C are 2.023 mV and 20.644 m

Post by answerhappygod »

Q1 05 It Is Known For A K Type Thermocouple That Thermoelectric Voltage At 50 C And 500 C Are 2 023 Mv And 20 644 M 1
Q1 05 It Is Known For A K Type Thermocouple That Thermoelectric Voltage At 50 C And 500 C Are 2 023 Mv And 20 644 M 1 (78.18 KiB) Viewed 18 times

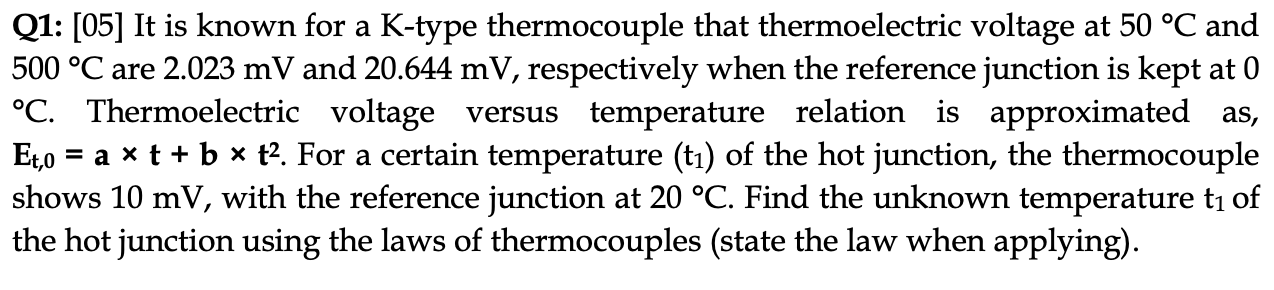

Q1: [05] It is known for a K-type thermocouple that thermoelectric voltage at 50 °C and 500 °C are 2.023 mV and 20.644 mV, respectively when the reference junction is kept at 0 °C. Thermoelectric voltage versus temperature relation is approximated as, Et,0 = a × t + b * t2. For a certain temperature (t1) of the hot junction, the thermocouple shows 10 mV, with the reference junction at 20 °C. Find the unknown temperature ti of the hot junction using the laws of thermocouples (state the law when applying).
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
