In the circuit below, both switches have been open for a long time. At time t = 0, the left switch closes. At time t=2 s

Post by answerhappygod »

In The Circuit Below Both Switches Have Been Open For A Long Time At Time T 0 The Left Switch Closes At Time T 2 S 1
In The Circuit Below Both Switches Have Been Open For A Long Time At Time T 0 The Left Switch Closes At Time T 2 S 1 (36.77 KiB) Viewed 20 times

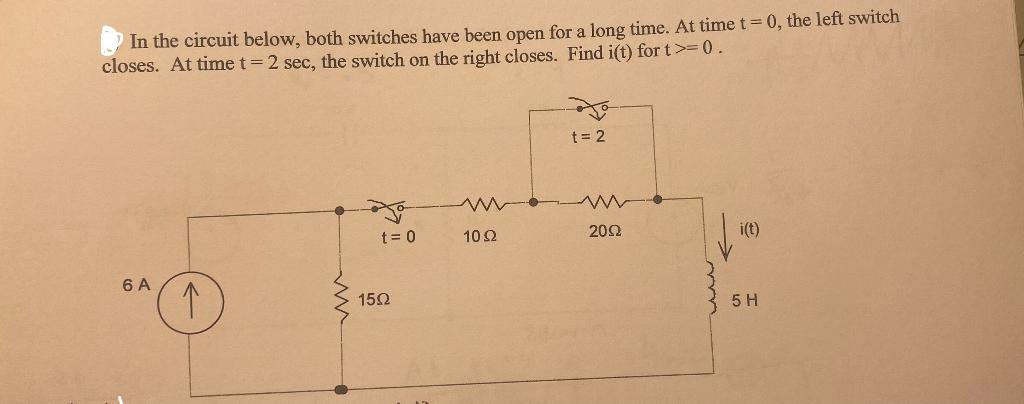

In the circuit below, both switches have been open for a long time. At time t = 0, the left switch closes. At time t=2 sec, the switch on the right closes. Find i(t) fort >=0. t= 2 t= 0 10Ω 2092 i(t) 6 A 15Ω 5 H
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
