Q3) For the following MOSFET differential Amplifier, consider Knl=Kn2=0.125mA/V2 and Kn3=Kn4= 0.25mA/V2 and VIN=1V. a- C

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Q3) For the following MOSFET differential Amplifier, consider Knl=Kn2=0.125mA/V2 and Kn3=Kn4= 0.25mA/V2 and VIN=1V. a- C

Post by answerhappygod »

Q3 For The Following Mosfet Differential Amplifier Consider Knl Kn2 0 125ma V2 And Kn3 Kn4 0 25ma V2 And Vin 1v A C 1
Q3 For The Following Mosfet Differential Amplifier Consider Knl Kn2 0 125ma V2 And Kn3 Kn4 0 25ma V2 And Vin 1v A C 1 (93.95 KiB) Viewed 21 times

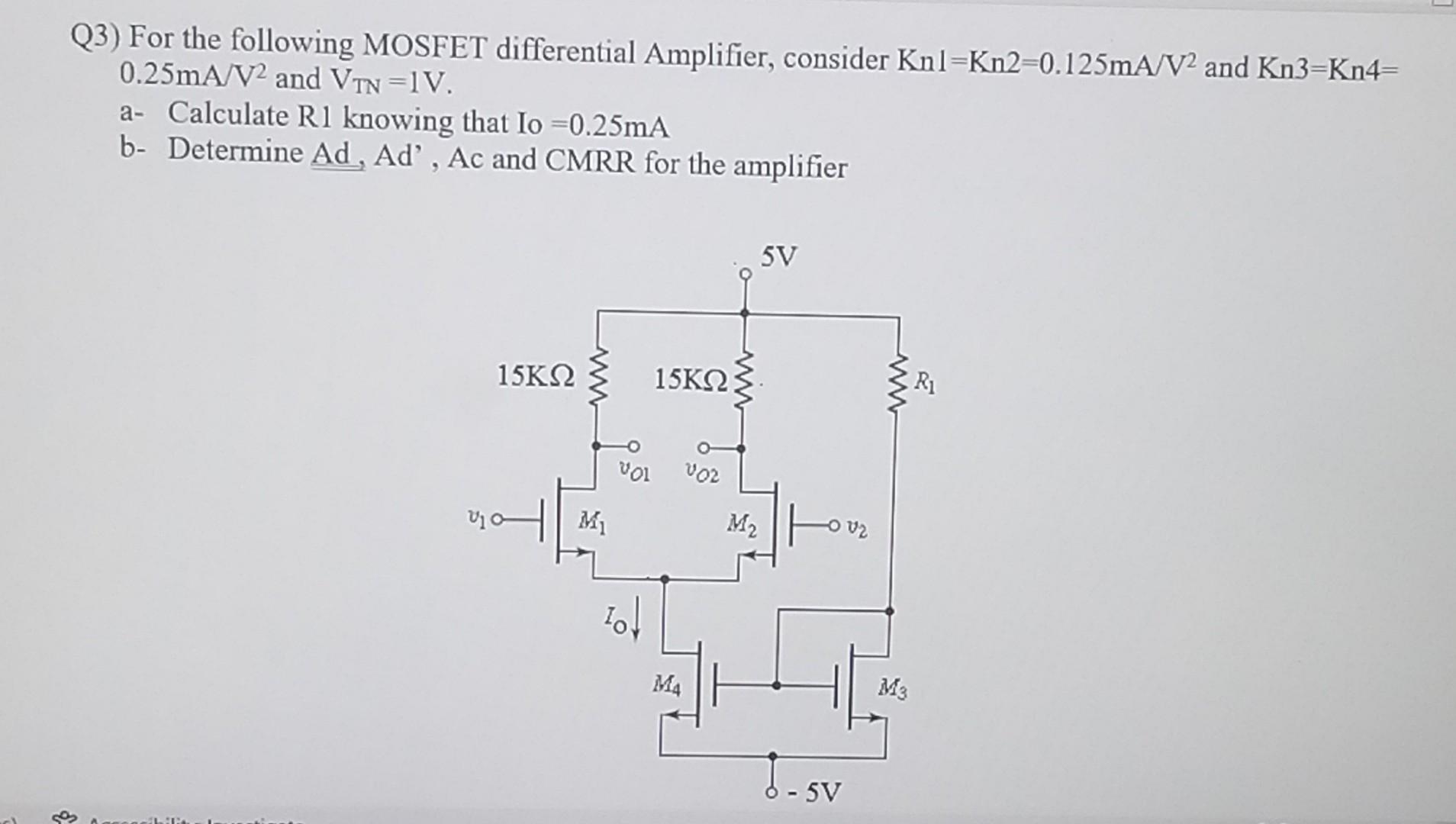

Q3) For the following MOSFET differential Amplifier, consider Knl=Kn2=0.125mA/V2 and Kn3=Kn4= 0.25mA/V2 and VIN=1V. a- Calculate Rl knowing that Io =0.25mA b- Determine Ad , Ad', Ac and CMRR for the amplifier 5V 15KS2 15ΚΩ: www Ri VOL VO2 via M M2 V2 lo M4 HE M3 -sv 1.5V
