1) sketch and sequence networks and their connections for a LL (phase b to phase c) fault 2) compute the fault current.

[answerhappygod]

1 Sketch And Sequence Networks And Their Connections For A Ll Phase B To Phase C Fault 2 Compute The Fault Current 1 (28.57 KiB) Viewed 36 times

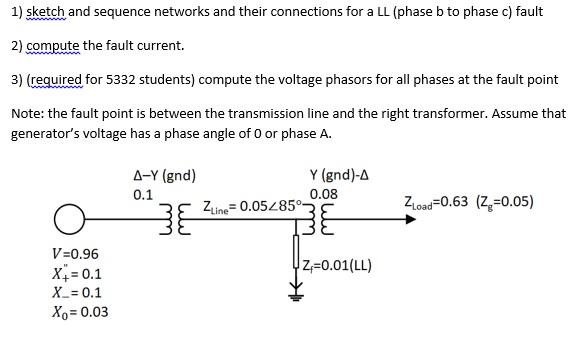

1) sketch and sequence networks and their connections for a LL (phase b to phase c) fault 2) compute the fault current. 3) (required for 5332 students) compute the voltage phasors for all phases at the fault point Note: the fault point is between the transmission line and the right transformer. Assume that generator's voltage has a phase angle of 0 or phase A. A-Y (gnd) 0.1 Y(gnd)- 0.08 ZLine= 0.05285 Zload=0.63 (2=0.05) 38 BE Z=0.01(LL) V=0.96 X = 0.1 X_= 0.1 Xe= 0.03
