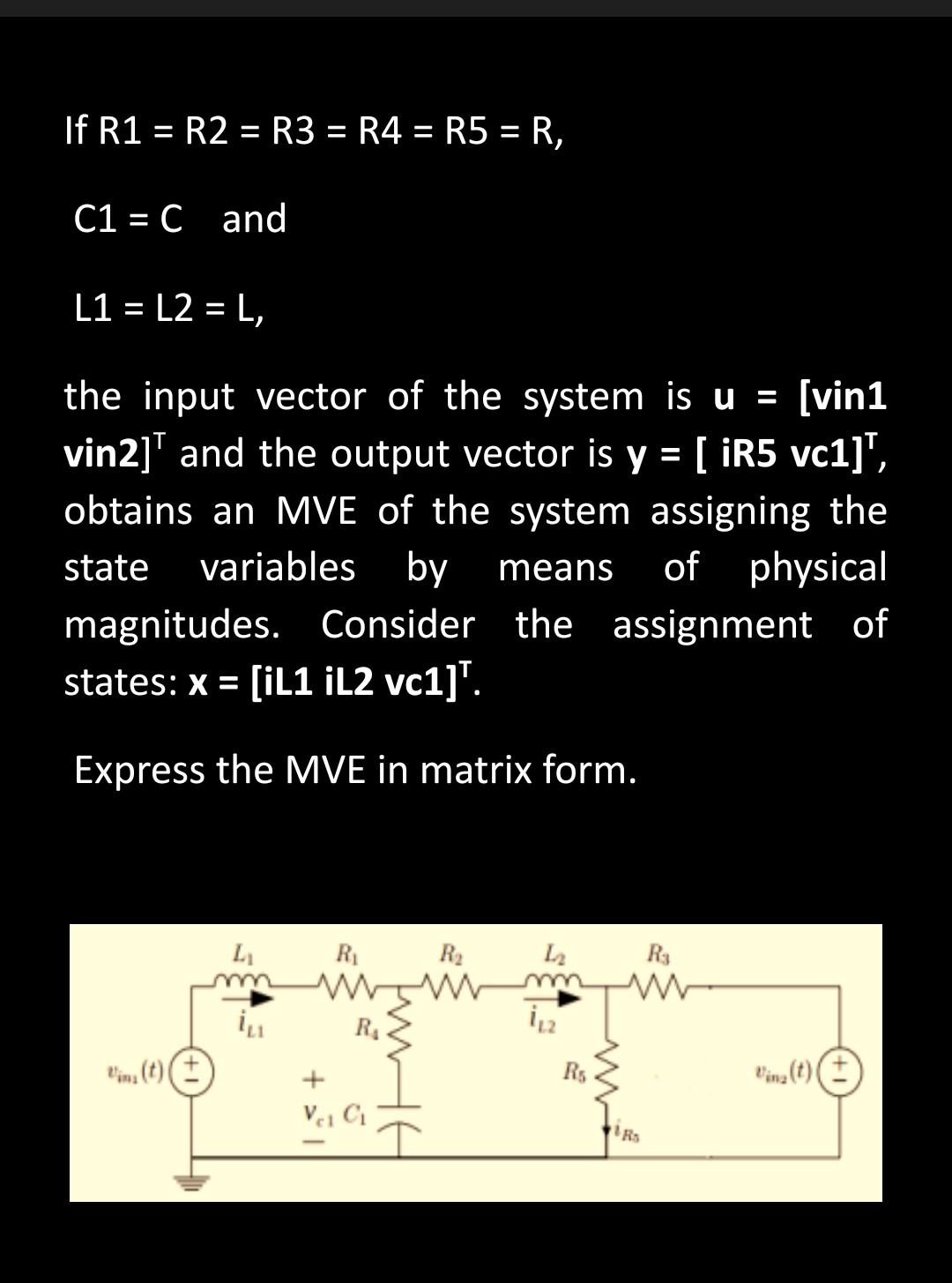

- If R1 R2 R3 R4 R5 R C1 C And L1 L2 L The Input Vector Of The System Is U Vin1 Vin2 And 1 (109.5 KiB) Viewed 41 times
If R1 = R2 = R3 = R4 = R5 = R, = - - C1 = C and - L1 = L2 = L, = the input vector of the system is u = (vin1 vin2]" and
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
If R1 = R2 = R3 = R4 = R5 = R, = - - C1 = C and - L1 = L2 = L, = the input vector of the system is u = (vin1 vin2]" and
If R1 = R2 = R3 = R4 = R5 = R, = - - C1 = C and - L1 = L2 = L, = the input vector of the system is u = (vin1 vin2]" and the output vector is y = [ iR5 vc1], obtains an MVE of the system assigning the state variables by means of physical magnitudes. Consider the assignment of states: x = [iL1 iL2 vc1]". Express the MVE in matrix form. L I R R Ww R R w Ime Rs + Pina (t) + C Rs
