(6) Given the angular frequency, w = 2 rad's and time, t = 1 s as shown in Figure Q2(). Determine the Equivalent circuit

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

(6) Given the angular frequency, w = 2 rad's and time, t = 1 s as shown in Figure Q2(). Determine the Equivalent circuit

Post by answerhappygod »

6 Given The Angular Frequency W 2 Rad S And Time T 1 S As Shown In Figure Q2 Determine The Equivalent Circuit 1
6 Given The Angular Frequency W 2 Rad S And Time T 1 S As Shown In Figure Q2 Determine The Equivalent Circuit 1 (22.3 KiB) Viewed 41 times

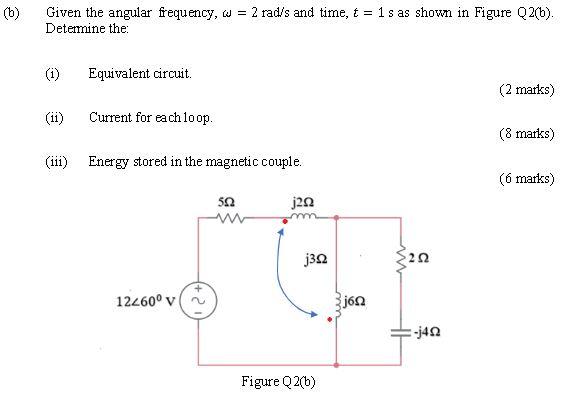

(6) Given the angular frequency, w = 2 rad's and time, t = 1 s as shown in Figure Q2(). Determine the Equivalent circuit. (2 marks) (11) Current for each loop. (8 marks) (111) Energy stored in the magnetic couple. (6 marks) 502 w 3202 j302 222 12260º v 3j62 -40 Figure Q2(b)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
