Question #3 Determine Vx and hence Vz(t) in the circuit shown in Fig. 3 using any method of your choice. Assume w = 100

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Question #3 Determine Vx and hence Vz(t) in the circuit shown in Fig. 3 using any method of your choice. Assume w = 100

Post by answerhappygod »

Question 3 Determine Vx And Hence Vz T In The Circuit Shown In Fig 3 Using Any Method Of Your Choice Assume W 100 1
Question 3 Determine Vx And Hence Vz T In The Circuit Shown In Fig 3 Using Any Method Of Your Choice Assume W 100 1 (41.35 KiB) Viewed 39 times

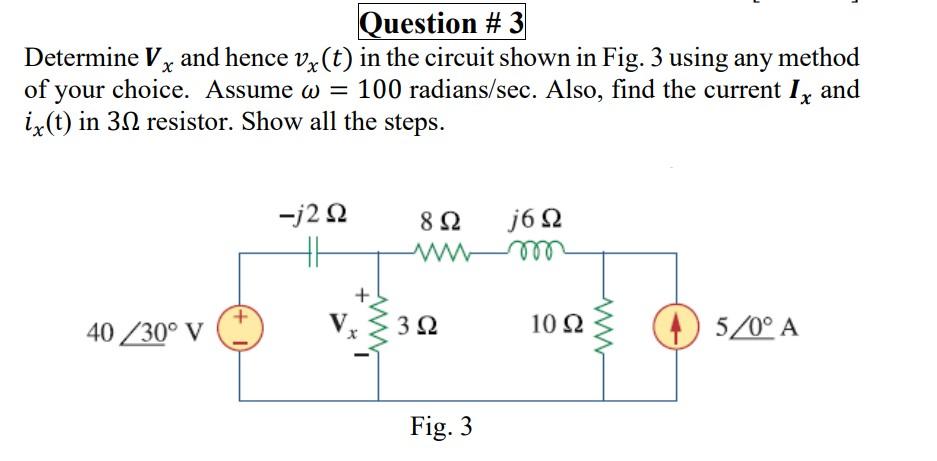

Question #3 Determine Vx and hence Vz(t) in the circuit shown in Fig. 3 using any method of your choice. Assume w = 100 radians/sec. Also, find the current Ix and iz(t) in 312 resistor. Show all the steps. -j2 22 HH j632 892 w V 40 /30° V 3 322 moto 1012 5/0° A Fig. 3
