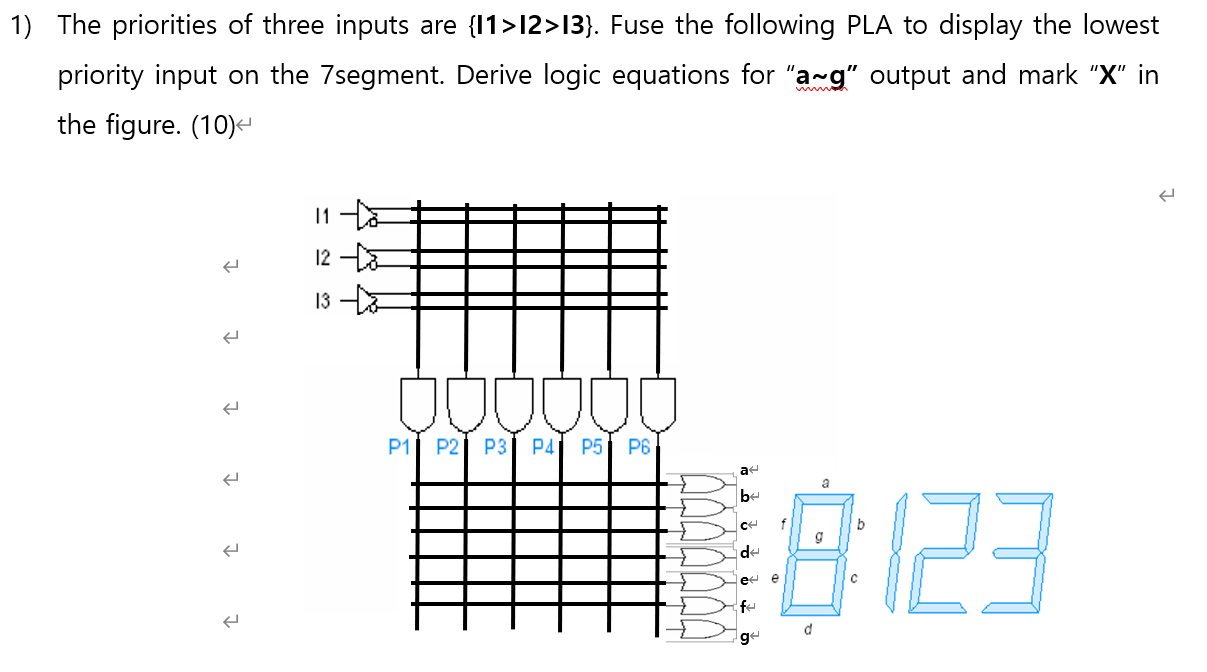

The priorities of three inputs are
{I1>I2>I3}. Fuse the following PLA to
display the lowest priority input on the 7segment. Derive logic
equations for “a~g” output and mark
“X” in the figure.
The Priorities Of Three Inputs Are I1 I2 I3 Fuse The Following Pla To Display The Lowest Priority Input On The 7segme 1 (72.26 KiB) Viewed 37 times
1) The priorities of three inputs are {11>12>13). Fuse the following PLA to display the lowest priority input on the 7segment. Derive logic equations for "a-g” output and mark "X" in the figure. (10) 11 to 12 - 13th 己 C JUUU P1 P2 P3 P4 P5 PG 利 b- q ce f de 8/23 ее е ܝܰ f d ge
