2. In the series RC circuit shown in Fig. 1.2, if the supply phasor voltage, Vs, is V220°V and the phasor voltage across
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2. In the series RC circuit shown in Fig. 1.2, if the supply phasor voltage, Vs, is V220°V and the phasor voltage across

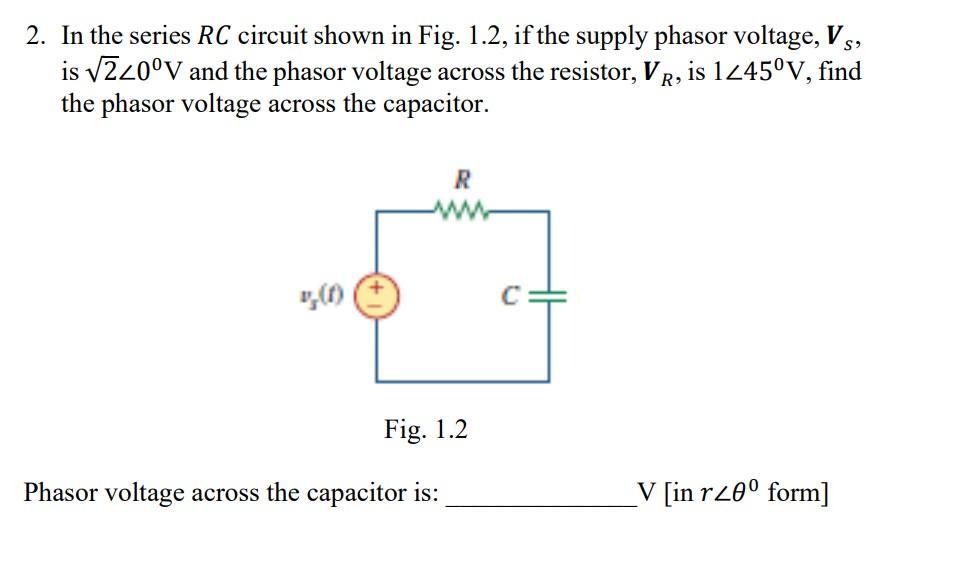

2. In the series RC circuit shown in Fig. 1.2, if the supply phasor voltage, Vs, is V220°V and the phasor voltage across the resistor, VR, is 1245°V, find the phasor voltage across the capacitor. R w Fig. 1.2 Phasor voltage across the capacitor is: V [in r20° form]
