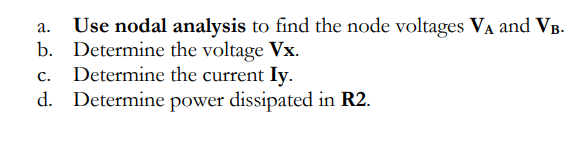

a. Use nodal analysis to find the node voltages VA and VB. b. Determine the voltage Vx. Determine the current Iy. d. Determine power dissipated in R2. c.

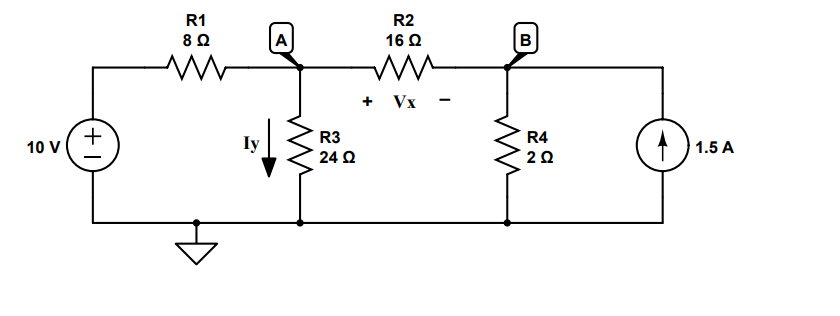

R1 8Ω R2 16 Ω A B + Vx w 10 V +1 Іy R3 24 Ω R4 20 1.5 A w
