For the circuit shown in Figure below, use nodal analysis OR-analysis to find:- a. The voltage across 3 resistor, V. (57

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

For the circuit shown in Figure below, use nodal analysis OR-analysis to find:- a. The voltage across 3 resistor, V. (57

Post by answerhappygod »

For The Circuit Shown In Figure Below Use Nodal Analysis Or Analysis To Find A The Voltage Across 3 Resistor V 57 1
For The Circuit Shown In Figure Below Use Nodal Analysis Or Analysis To Find A The Voltage Across 3 Resistor V 57 1 (48.48 KiB) Viewed 36 times

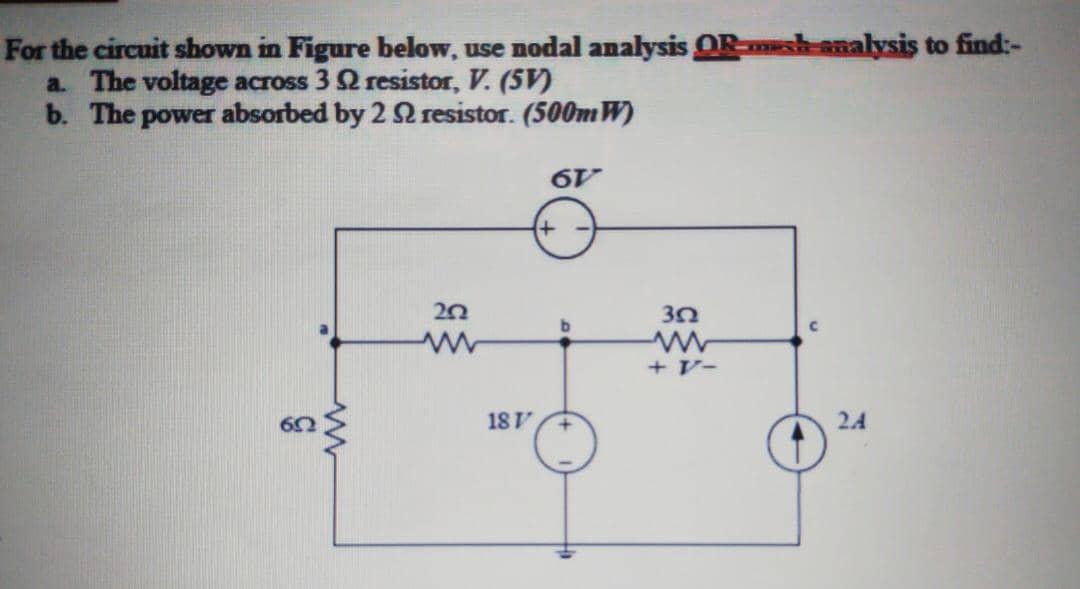

For the circuit shown in Figure below, use nodal analysis OR-analysis to find:- a. The voltage across 3 resistor, V. (57) b. The power absorbed by 2 2 resistor. (500mW) OT + 202 302 b + T- w 181 2A
